The control board is the “brain” of your Whirlpool washer, managing every cycle from filling and washing to spinning and draining. When it starts to fail, the washer can behave unpredictably or stop working completely.
Understanding the symptoms early can help you avoid unnecessary repairs and quickly identify whether replacement is needed.
“Early warning signs of board failure”
In many cases, control board issues can look similar to problems with the lid lock, motor, or water inlet valve—so careful diagnosis is important before replacing any parts.

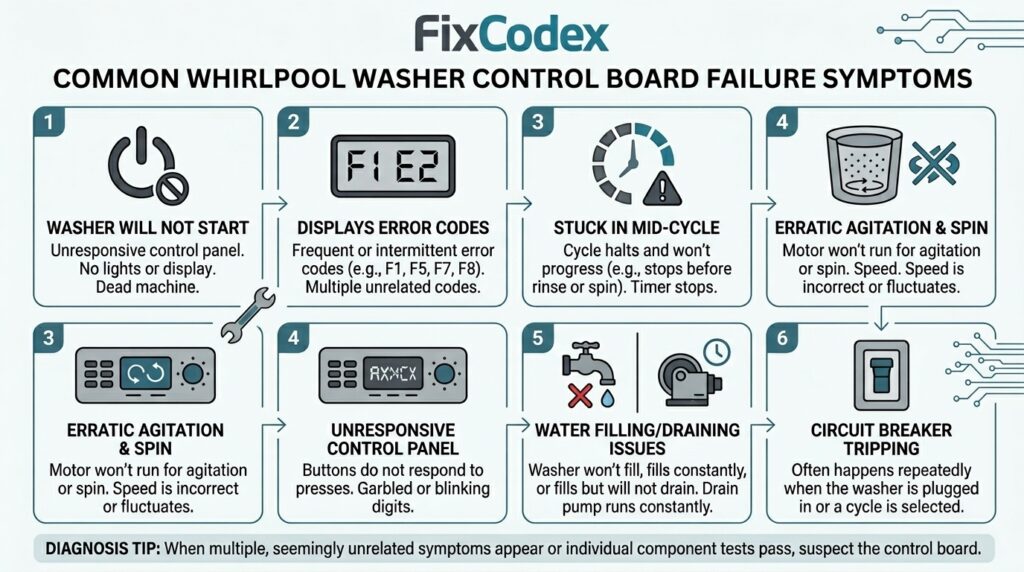

Common Whirlpool Washer Control Board Failure Symptoms
If your control board is failing, you may notice one or more of the following signs:
- Washer won’t turn on even when power is available
- Washer stops mid-cycle without finishing
- Random or repeated error codes appear on display
- Control panel buttons do not respond
- Washer starts but does not progress through cycles
- Lights flash but no operation occurs
- Intermittent operation (works sometimes, fails other times)
- Washer resets or restarts unexpectedly
- Burning smell near the control panel area
- No communication between control board and other components
These symptoms often indicate that the control board is no longer properly sending or receiving signals within the washer system. Read more details.
1. Washer Won’t Turn On
One of the most common symptoms is a completely unresponsive washer.
- No lights on the control panel
- No response when pressing the power button
- Washer appears “dead” even though outlet has power
This may indicate the control board is not distributing power internally, or it has failed completely.
2. Washer Stops Mid-Cycle
The washer may start normally but stop before completing a cycle.
- Cycle freezes randomly
- Washer shuts off during wash or rinse
- No error code displayed in some cases
This often points to internal communication failure within the control board.
3. Random or Repeating Error Codes
Faulty control boards can send incorrect signals or fail to interpret sensor data.
- Same error code appears repeatedly
- Multiple unrelated error codes show up
- Error codes appear with no clear cause
If components test fine but errors continue, the control board may be misreading inputs.
4. Unresponsive Control Panel Buttons
The washer may power on, but controls do not work properly.
- Buttons do not respond or respond intermittently
- Cycle selection cannot be changed
- Start/pause button fails to activate washer
This can indicate failure in the user interface communication or the main control board.
5. Washer Starts but Doesn’t Progress
The machine may begin a cycle but fail to move through stages.
- Stuck on sensing or fill stage
- Wash cycle never advances
- Drum does not move or spin
This is often due to the control board not sending signals to other components.
6. Lights Flashing but No Operation
A common sign of control or communication failure.
- All LEDs flash but washer does not run
- Display is active but no mechanical action occurs
- Washer appears “confused” or stuck
This often indicates a breakdown in control board logic or firmware.
7. Intermittent Operation
One of the hardest symptoms to diagnose.
- Washer works sometimes and fails other times
- Problems appear randomly
- Restarting temporarily fixes the issue
Intermittent failures are often early signs of a degrading control board.
8. Burning Smell or Overheating
Physical damage inside the control board may create heat or odor.
- Burning smell near control panel
- Discoloration on board components (if inspected)
- Overheating after short use
This usually indicates electrical failure and requires immediate replacement.
9. No Communication With Components
The control board may fail to communicate with key parts of the washer.
- Motor does not respond
- Water inlet valve does not activate
- Drain pump does not engage
- Sensors appear “inactive”
When multiple components fail at once, the control board is often the central issue.
10. Erratic or Delayed Responses
The washer behaves unpredictably or responds slowly.
- Delay between pressing buttons and action
- Random changes in cycle behavior
- Washer behaves differently each run
This can indicate corrupted control signals or failing internal circuitry.
If your Whirlpool washer shows multiple symptoms at the same time—especially unresponsive controls, cycle failures, or repeated errors—the control board is a strong candidate for failure. However, always confirm by checking wiring, power supply, and related components before replacing it.
How to Tell If It’s Really the Control Board
Before replacing the control board, it’s important to rule out other common issues that can cause similar symptoms:
- Check power supply (outlet, breaker, cord)
- Inspect wiring harness and connectors
- Verify lid lock or door switch operation
- Look for water inlet or drain pump faults
- Check for loose or damaged connections
If all other components test fine, the control board is often the root cause.
Step-by-Step Diagnosis Overview
To confirm a failing control board, follow a basic diagnostic approach:
- Confirm washer has proper power
- Check for visible damage or burnt components
- Record any error codes displayed
- Test related components (motor, lid lock, sensors)
- Observe whether symptoms are consistent or intermittent
If multiple systems fail at once or the washer behaves erratically, the control board is likely defective.
Related Troubleshooting Topics
For deeper diagnosis, explore these detailed guides:
- Whirlpool Washer Won’t Turn On: Control Board or Power Issue?
- Whirlpool Washer Stops Mid-Cycle: Is the Control Board Failing?
- Whirlpool Washer Randomly Resets or Restarts: What It Means
- Whirlpool Washer Display Shows Error Codes with No Fix
- How to Diagnose Whirlpool Washer Control Board Problems Step-by-Step
When to Replace the Control Board
You should consider replacing the control board when:
- Multiple symptoms appear at the same time
- Error codes persist after resets
- Physical damage is visible on the board
- Other components test normal but issues continue
Replacing a faulty control board is often the most effective way to restore full washer functionality.
Final Thoughts
Whirlpool washer control board failures can cause a wide range of confusing symptoms, from simple control issues to complete machine shutdown. By carefully diagnosing the signs and ruling out other components, you can avoid unnecessary part replacements and fix the real problem faster. Learn more at Whirlpool Product Help.
