If your Whirlpool washer is showing error codes, not starting, draining continuously, or stuck mid-cycle, the problem is very often the main control board.

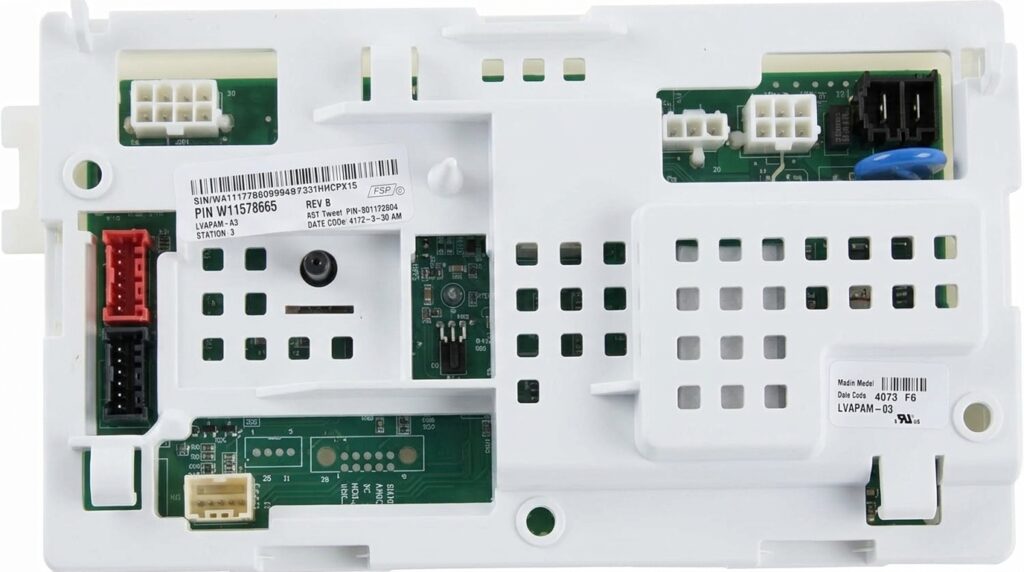

The Whirlpool W11603810 (also replaces W11578565) is the OEM electronic control board that manages all washer operations—including water fill, draining, spin cycles, and error code detection.
This is one of the most commonly replaced parts in newer Whirlpool top-load washers due to known control system failures.
⚠️ Common Whirlpool Error Codes Fixed by This Control Board
This part is directly linked to several critical Whirlpool washer error codes, including:
- F1E1 → Main control board failure
- F3E1 → Pressure system / control logic issue
- F5E2 / F5E3 → Door lock communication errors (in some models)
- F7E1 → Motor speed control failure
- F8E1 / Long Fill errors → Cycle control malfunction
- F9E1 → Drain system not responding correctly
👉 In many cases, these errors are NOT individual part failures—they are symptoms of control board malfunction.
🔧 Symptoms of a Bad Whirlpool Control Board
If your washer is experiencing any of the following, the control board is a top suspect:
- Washer won’t start even though power is on
- Display is frozen or unresponsive
- Washer stuck draining continuously
- Cycle does not advance
- Random or multiple error codes appear
- Washer stops mid-cycle
- Buttons or touch panel not responding
👉 These symptoms often indicate logic failure in the main PCB (W11603810 / W11578565).
🧩 What This Part Does
The Whirlpool W11603810 control board acts as the “brain” of the washer:
- Controls wash, rinse, and spin cycles
- Reads sensor inputs (water level, motor speed, lid lock)
- Activates drain pump and inlet valves
- Detects and displays error codes
- Communicates with motor and UI panel
👉 If this board fails, the washer becomes unpredictable or completely non-functional.
🔄 Compatible Part Numbers
This control board replaces: Whirlpool W11603810 Washer Control Board, W11578565, W11603810, PS16744838, AP7193495, EAP16744838, FIX16744838, 4980453, AWP599269, PD00084545, CKD744838X, AP7193495, PS16744838, FIX16744838
👉 Many Whirlpool washers use interchangeable revisions depending on production batch.
🧰 Compatible Whirlpool Washer Models (Examples)
Common compatible models include:
- Whirlpool top-load HE washers
- Models starting with WTW series
- Select Amana / Maytag equivalents using Whirlpool platform boards
👉 Always confirm compatibility using your model number before purchase.
💡 Why This Control Board Fails (Common Causes)
Based on real repair data and user reports:
- Power surges / unstable voltage
- Moisture exposure inside control housing
- Pressure sensor signal errors causing logic lock
- Long-term heat stress on PCB components
- Factory revision issues in certain production batches
👉 Many users report failure between 12–24 months of use in some models.
🛠️ Repair vs Replacement Advice
Replace the board if:
- Multiple error codes appear
- Washer is unresponsive or stuck in drain mode
- Reset does not clear the issue
Consider other parts first if:
- Only one mechanical symptom exists (belt, pump noise, etc.)
- No error codes are present
👉 In most electronic Whirlpool failures, replacing the board resolves the issue.
🛒 Buying Tips
When choosing a replacement board on eBay:
- ✔ Look for OEM “Whirlpool Genuine” listings
- ✔ Check seller feedback (98%+)
- ✔ Prefer tested or refurbished boards for lower cost
- ✔ Confirm exact part match: W11603810 / W11578565
- ✔ Avoid generic clones unless well-reviewed
Whirlpool W11603810 Washer Control Board
Tip: eBay prices change daily — checking multiple listings helps you get the lowest price and avoid overpaying.
Related Articles for W11603810 Control Board
- Whirlpool Washer Won’t Start But Has Power (Is the W11603810 Control Board the Problem?)
- Whirlpool Washer Stops Mid-Cycle: Is the W11603810 Control Board Failing?
- Whirlpool Washer Control Panel Not Responding (W11603810 Diagnosis Guide)
- Burning Smell in Whirlpool Washer – Is the W11603810 Control Board Damaged?
- How to Test Whirlpool W11603810 Control Board Before Replacing It
⚡ Final Recommendation
The Whirlpool W11603810 / W11578565 control board is the core electronic module for many Whirlpool washers.
If your washer shows repeated error codes or becomes unresponsive, replacing this board is often the fastest and most cost-effective repair solution.
👉 Always verify model compatibility before ordering.
