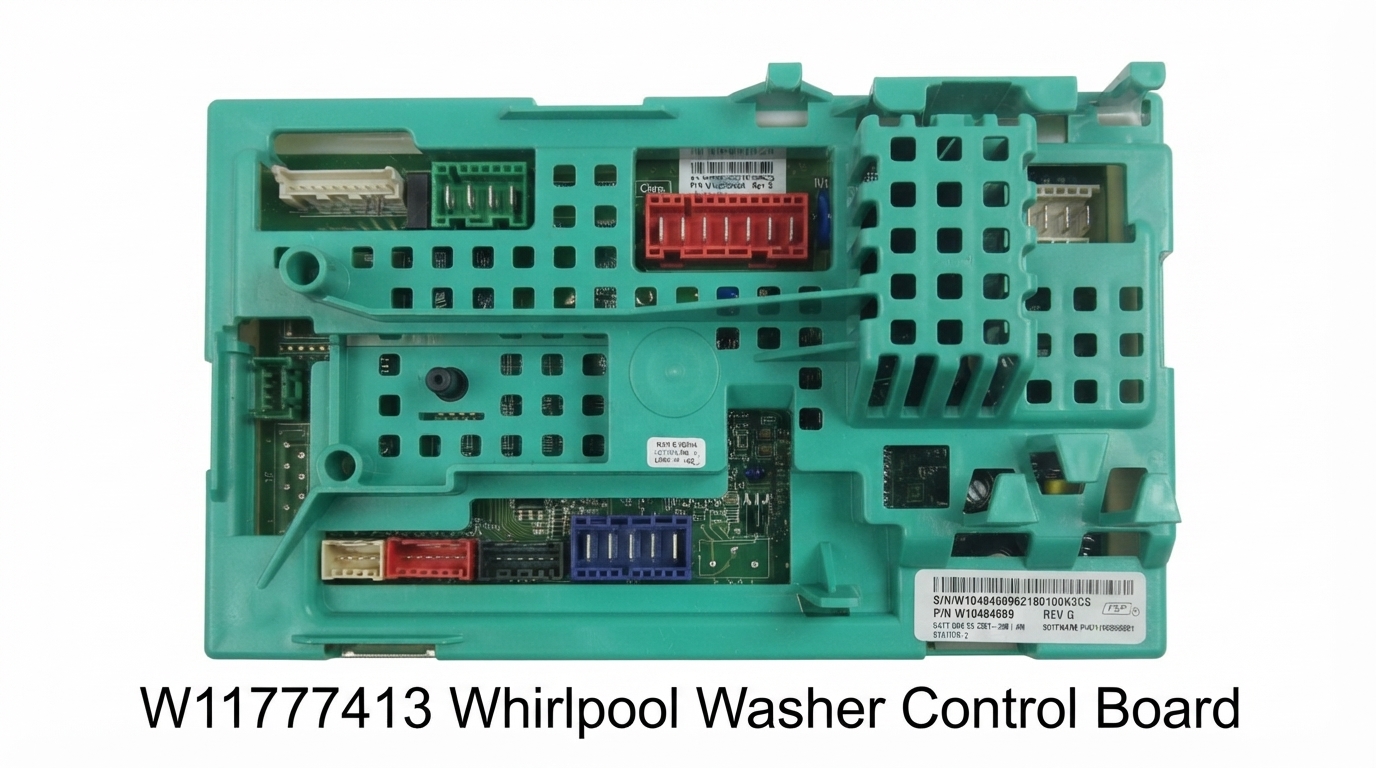

Restore Your Whirlpool Washer’s Performance with W11777413 Control Board
Restore your Whirlpool washer’s performance with the W11777413 Whirlpool Washer Control Board, a high-quality replacement designed to replace multiple OEM control board part numbers, including W11831578, W11298479, W11368855, W11712987, W11771704, W11771426, W11689483, W11299974, and W11447258.
“Always verify your washer model number before ordering to ensure compatibility.”
This electronic control board is built for select compatible Whirlpool washers and provides a dependable solution for replacing a failed or malfunctioning control module.
The W11777413 washer control board functions as the main electronic control center of your washing machine, managing important operations such as wash cycles, motor control, water inlet functions, and washer settings.
Replacing a defective control board can help restore proper washer operation and resolve common issues caused by electronic failure, including cycle interruptions, unresponsive controls, and startup problems.
Product Features
- Genuine Whirlpool OEM replacement part
- Part Number: W11777413
- Part Type: Washer Electronic Control Board / CCU Assembly
- Designed for select Whirlpool and Kenmore washing machines
- Controls washer functions including:
- Wash cycle timing
- Motor operation
- Water fill functions
- Machine communication and electronic settings
- Direct replacement for compatible models
- Helps restore normal washer performance after control board failure

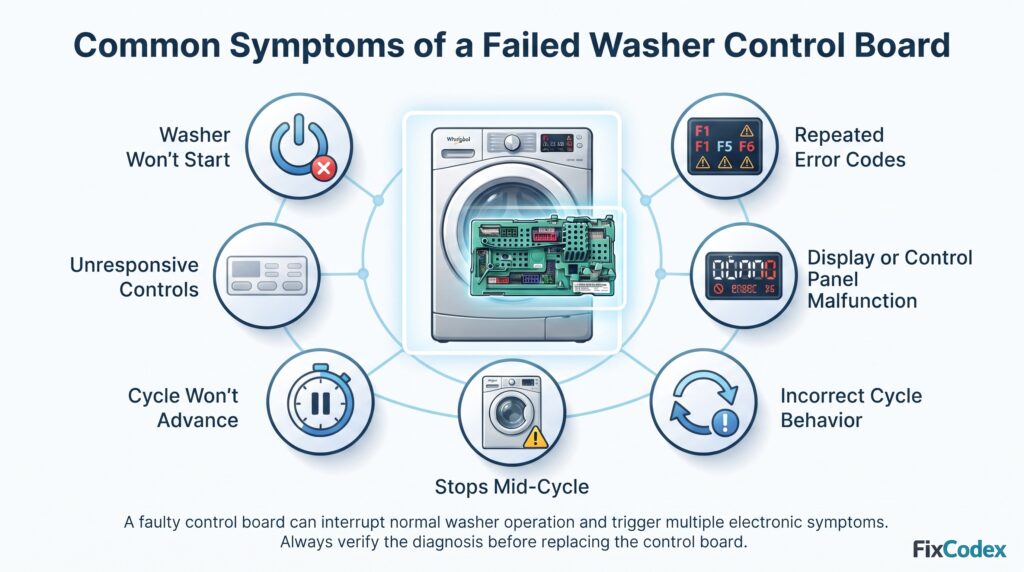

Common Symptoms of a Failed Washer Control Board
Your washer may need a replacement W11777413 control board if you experience:
- Washer will not start
- Buttons or controls are not responding
- Cycle will not advance
- Washer stops during operation
- Incorrect cycle behavior
- Display or electronic controls malfunction
- Repeated electronic error issues
Whirlpool Washer Error Codes Related to a Faulty Control Board
A failing W11777413 Whirlpool Washer Control Board can contribute to various electronic and operational issues, including error codes caused by communication problems, control failures, or incorrect signals between washer components. While error codes can have multiple causes, a defective main control board may be the solution when troubleshooting points to an electronic control failure.
Common Whirlpool washer error codes that may be associated with control board problems include:
F1 – Control Board Failure
Possible issue: The washer detects a problem with the main electronic control.
Common symptoms:
- Washer will not start
- Controls are unresponsive
- Random cycle interruptions
- Incorrect washer operation
F5 / F6 – Communication or Control Errors
Possible issue: Communication problems between the control board and other washer components.
Common symptoms:
- Washer stops unexpectedly
- Cycle will not complete
- Display errors or flashing lights
F7 – Motor or Motor Control Related Error
Possible issue: The control board is not properly communicating with the motor system.
Common symptoms:
- Washer will not spin
- Washer stops during the wash cycle
- Motor operation is inconsistent
F8 / F9 – System Control or Drain Related Errors
Possible issue: Electronic control issues affecting washer functions.
Common symptoms:
- Washer does not complete cycles
- Drain or cycle timing problems
- Repeated error messages
When Should You Replace the W11777413 Control Board?
A control board replacement may be needed when:
- Error codes return after checking other components
- The washer has power but will not operate correctly
- Buttons or settings do not respond
- The washer stops mid-cycle without a mechanical cause
- Diagnostic testing indicates a failed electronic control
Before replacing the W11777413 Whirlpool Washer Control Board, check wiring connections, power supply, door/lid lock operation, and other related components to confirm the control board is the source of the problem.
Compatible Part Numbers & Models
The W11777413 Whirlpool Washer Control Board is a replacement for multiple Whirlpool control board part numbers, including W11831578, W11298479, W11368855, W11712987, W11771704, W11771426, W11689483, W11299974, and W11447258.
This control board is compatible with select Whirlpool washer models, including CAE2745FQ1, CAE2745FQ2, CAE2795FQ1, CAE2795FQ2, 11027022711, and other compatible models. Always verify your washer model number before ordering to ensure the correct fit.
Why Choose the W11777413 Whirlpool Control Board?
A failed control board can prevent your washer from completing even basic functions. Instead of replacing an entire washing machine, installing the correct OEM electronic control board can be a cost-effective repair solution.
The W11777413 is engineered to match the original equipment specifications, helping your Whirlpool washer operate as designed.
Installation Information
Important: Disconnect power before replacing any washer electronic components.
Installation tips:
- Unplug the washer from the electrical outlet.
- Remove the existing control board carefully.
- Transfer wiring connections one at a time.
- Install the replacement board securely.
- Run washer diagnostics if required by your model.
Some washers may require configuration, calibration, or diagnostic procedures after installation.
Order Your W11777413 Whirlpool Washer Control Board Today
Get your washer back to dependable operation with the W11777413 Whirlpool Washer Control Board. This OEM replacement component is the ideal solution for repairing washer control issues and restoring essential electronic functions.
Before ordering: Confirm your washer model number to ensure this control board is the correct match for your appliance.
