If your Whirlpool washer displays Sd or SUD error code, it means the machine has detected too many soap suds (foam) inside the drum. This excess foam can prevent proper draining, spinning, and cycle completion.
“SUD code doesn’t mean broken washer.”
This guide explains the meaning, causes, symptoms, and step-by-step fixes to resolve the Whirlpool SUD error quickly.
What Does Whirlpool Sd / SUD Error Mean?
The Sd or SUD error code stands for “Suds Detected”.
Your Whirlpool washer is programmed to detect excessive foam buildup during the wash or rinse cycle. When too many suds are detected, the washer may:
- Pause the cycle
- Extend rinse time
- Stop spinning
- Show the SUD error on the display
This is a protective feature, not a hardware failure in most cases.

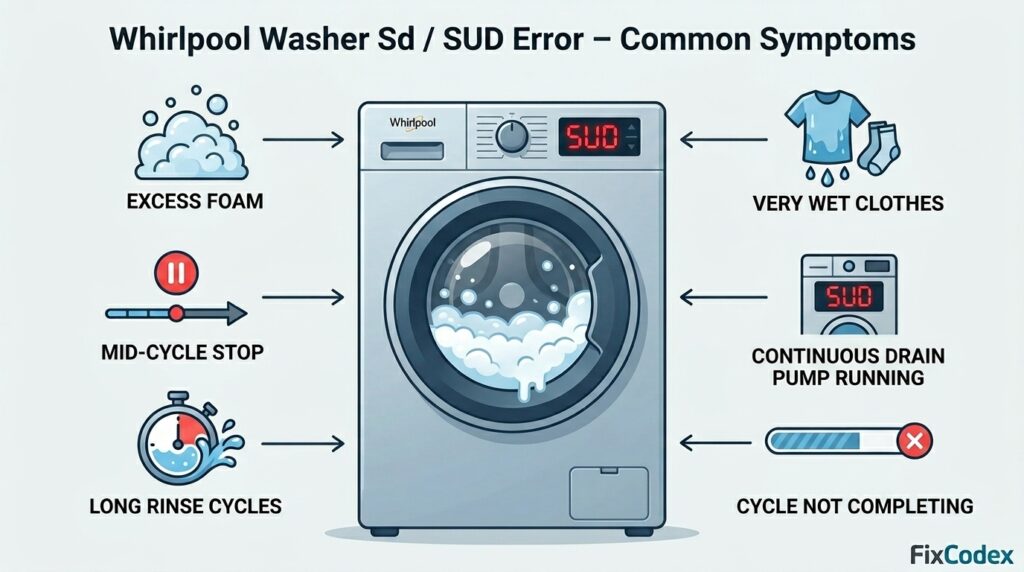

Common Symptoms of SUD Error
If your Whirlpool washer displays the Sd / SUD error code, it usually means the machine has detected excessive soap suds inside the drum.
This can affect normal washing performance and interrupt the cycle. You may notice foam buildup, longer rinse times, or the washer stopping before the cycle is complete.
If your washer shows Sd / SUD, you may notice:
- Excess foam or bubbles inside the drum
- Washer stops mid-cycle
- Long or repeated rinse cycles
- Clothes come out very wet
- Drain pump runs continuously
- Error code Sd or SUD appears on display
- Washer fails to complete cycle
Main Causes of Whirlpool SUD Error
The Whirlpool SUD error code is usually triggered when the washer detects too many soap suds during a cycle. This often happens due to common usage issues rather than a mechanical failure.
Below are the main causes that can lead to excess foam buildup and activate the SUD error.
1. Too Much Detergent
Using more detergent than recommended is the most common cause.
2. Non-HE Detergent
Regular detergent creates too many suds in high-efficiency washers.
3. Detergent Buildup
Old detergent residue inside the washer can create foam issues.
4. Soft Water Conditions
Soft water naturally produces more suds than hard water.
5. Overloaded Washer
Too many clothes trap detergent and prevent proper rinsing.

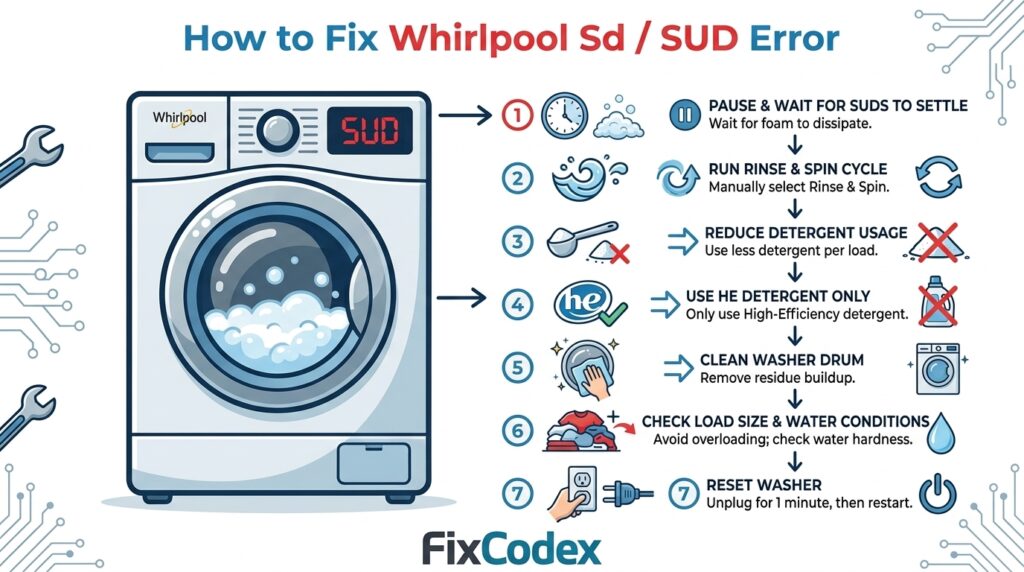

How to Fix Whirlpool Sd / SUD Error (Step-by-Step)
If your Whirlpool washer shows the Sd / SUD error code, don’t worry—this is usually caused by excess soap suds rather than a serious fault. The issue can often be fixed by following a few simple steps, starting with letting the foam settle and then adjusting detergent use.
Follow the guide below to clear the error and restore normal washing performance.
Step 1: Pause and Let Suds Settle
- Stop the cycle
- Wait 20–30 minutes
- Allow foam to break down naturally
Then restart a drain/spin cycle.
Step 2: Run a Rinse & Spin Cycle
- Select rinse/spin mode
- Do not add detergent
- This helps remove excess foam
Step 3: Reduce Detergent Usage
- Use 1–2 tablespoons of HE detergent only
- Follow manufacturer dosage instructions
- Avoid over-pouring detergent
Step 4: Use High-Efficiency (HE) Detergent
Always use:
- HE-certified detergent only
- Low-sudsing formulas
- Correct dosage for load size
Step 5: Clean the Washer Drum
Run a cleaning cycle:
- Use “Clean Washer” mode if available
- Or run hot water cycle with washer cleaner
- Remove detergent buildup and residue
Step 6: Check Water Quality & Load Size
- Avoid overloading the washer
- Reduce detergent if water is soft
- Balance load size for proper rinsing
Step 7: Reset the Washer (If Needed)
- Unplug washer for 5 minutes
- Plug back in
- Run a drain/spin cycle
🔧 Common Damaged Parts – Whirlpool Sd / SUD Error
If your Whirlpool washer displays the Sd / SUD error code, it is usually related to excess suds rather than a major hardware failure.
However, in some persistent cases, certain components may contribute to incorrect suds detection or poor drainage.
Below are the common parts that can be involved when this error continues to appear.
1. Pressure Switch / Water Level Sensor
- Fails to correctly detect water level or suds condition
- Can falsely trigger SUD error
- May cause overfilling or improper rinse cycles
2. Drain Pump
- Weak or failing pump may not remove suds properly
- Leaves excess foam in the drum
- Can cause repeated SUD or long drain cycles
3. Pressure Hose (Air Tube)
- Clogged with detergent residue or debris
- Sends incorrect pressure readings to control board
- Leads to false suds detection
4. Control Board (Main PCB)
- Misinterprets signals from sensors
- May incorrectly trigger SUD error even without excess foam
- Electrical faults can affect cycle logic
5. Detergent Dispenser Assembly
- Clogged or blocked dispenser can release detergent unevenly
- Causes excessive suds buildup during wash cycle
6. Water Inlet Valve
- Incorrect water flow can lead to poor rinsing
- Leaves detergent behind, creating foam buildup
7. Drain Hose (Partial Blockage)
- Slows down water and suds removal
- Causes foam to remain in drum longer than normal
8. Washer Tub / Residue Buildup
- Detergent and softener buildup inside tub
- Creates continuous foam even with correct detergent use
⚠️ Important Note
In most cases, the SUD error is NOT caused by a broken part, but by:
- Too much detergent
- Wrong detergent type (non-HE)
- Poor rinsing conditions
Only persistent cases usually involve part failure.
Whirlpool Duet SUD Error FIXED! Stop Excess Suds Fast!
If your Whirlpool Duet washer is showing the SUD error code, it means the machine has detected too many soap suds and is stopping the cycle to protect itself.
In this video, Ray Fixes All shows you simple, step-by-step methods to remove excess foam and fix the issue so your washer can run normally again.
How to Prevent SUD Error in the Future
To avoid repeated Sd / SUD errors:
- Always use HE detergent
- Measure detergent carefully
- Do not overload the washer
- Run monthly cleaning cycles
- Avoid mixing heavy foam-producing products
- Clean detergent drawer regularly
Is SUD Error Serious?
In most cases, no—this is not a mechanical failure.
The SUD error is usually caused by:
- Excess detergent
- User load habits
- Foam buildup
However, if the error persists after cleaning and proper detergent use, there may be:
- Drain pump issues
- Pressure sensor problems
- Control system misread
When to Call a Technician
Contact a professional if:
- SUD error keeps returning frequently
- Washer cannot drain properly
- Foam appears even with correct detergent use
- Machine stops every cycle
FAQ – Whirlpool Sd / SUD Error
Why does my Whirlpool washer say SUD?
It means there is too much soap foam in the drum.
How do I clear SUD error quickly?
Run a rinse/spin cycle and reduce detergent use.
Can SUD error damage my washer?
No, but repeated excess suds can affect performance over time.
The Whirlpool Sd / SUD error code is mainly caused by excess detergent or improper usage, not a hardware failure. In most cases, reducing detergent and running a rinse cycle will fix the issue quickly.
Proper detergent use and regular cleaning will help prevent this error from coming back.
