Whirlpool Washer Stops Mid-Cycle: Is the W11603810 Control Board Failing?

by
Whirlpool washer stopping mid-cycle due to possible W11603810 control board failure in a home laundry room setting.

Whirlpool Washer Stops Mid-Cycle (W11603810 Issue?)

If your Whirlpool washer starts normally but suddenly stops before completing the cycle, a faulty control board may be the cause.

While several components can interrupt a wash cycle, the Whirlpool W11603810 control board is responsible for managing and coordinating most washer functions. When it begins to fail, the machine may stop unexpectedly, freeze during operation, or become unresponsive.

⚠️ Won’t Finish the Wash?

In this guide, we’ll look at the common causes of a washer stopping mid-cycle and how to determine whether the W11603810 control board is the problem.

Why Does a Washer Stop Mid-Cycle?

A washer that stops before finishing a cycle can be caused by several issues, including:

  • A faulty lid lock or door switch
  • Drainage problems
  • Water supply interruptions
  • Wiring or electrical issues
  • A failing control board

Before replacing any parts, it’s important to identify the root cause of the problem.

Signs the W11603810 Control Board May Be Failing

The control board becomes a likely suspect when you notice symptoms such as:

  • The washer freezes at the same point during multiple cycles
  • The display remains on, but the cycle will not continue
  • Buttons stop responding after the cycle starts
  • The washer shuts down randomly without completing the wash
  • Resetting the washer only temporarily fixes the issue

Because the control board controls communication between major components, a failure can prevent the washer from advancing through its programmed cycle.

Other Components to Check First

A washer that stops mid-cycle is not always caused by a faulty control board. Several other components can interrupt normal operation and produce similar symptoms. Before replacing the W11603810 control board, inspect these common problem areas to rule out simpler and less expensive causes.

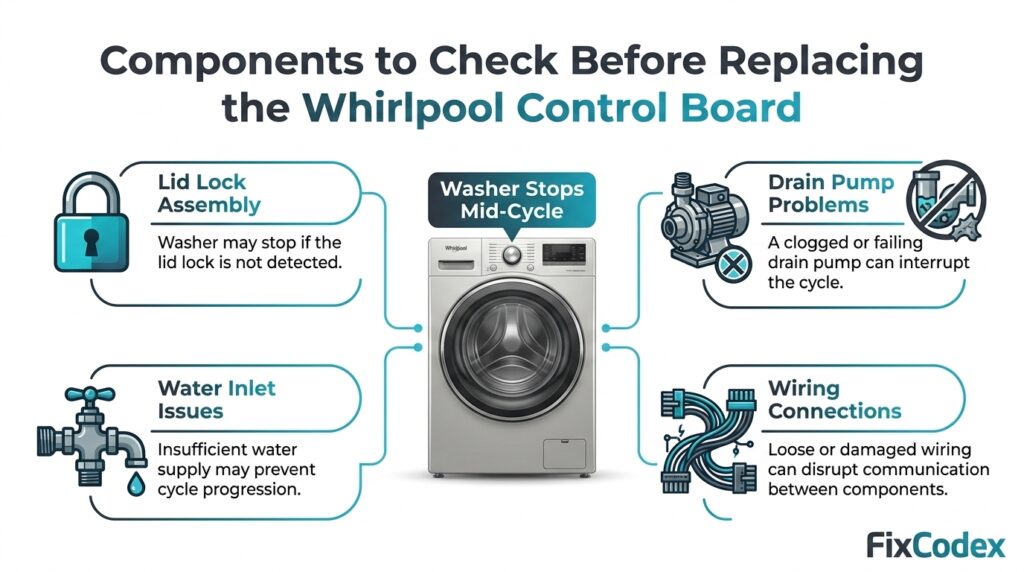

Diagram showing lid lock, drain pump, water inlet, and wiring connections to check before replacing a Whirlpool washer control board.

Here are some of the most common components to inspect when a Whirlpool washer stops mid-cycle:

1. Lid Lock Assembly

If the washer loses confirmation that the lid is securely locked, it may pause or stop the cycle for safety reasons.

2. Drain Pump Problems

A clogged or failing drain pump can prevent the washer from moving to the next stage of the cycle.

3. Water Inlet Issues

If the washer cannot fill properly, the cycle may stop unexpectedly.

4. Wiring Connections

Loose, damaged, or corroded wiring can interrupt communication between the control board and other components.

How to Perform a Quick DIY Check

Before replacing the control board:

  1. Unplug the washer for five minutes and reconnect power.
  2. Run a different wash cycle to see if the problem repeats.
  3. Check for visible wiring damage.
  4. Verify the lid lock is functioning properly.
  5. Inspect the drain system for blockages.

If these checks reveal no obvious issues and the washer consistently stops mid-cycle, the W11603810 control board may require replacement.

🎥 Watch This Troubleshooting Video

If your top-load washer stops mid-cycle, this RepairClinic.com video covers common causes and troubleshooting steps to help identify the problem before replacing parts.

When to Consider Replacing the W11603810 Control Board

Replacement is often the next step when:

  • The washer repeatedly stops at random points.
  • No mechanical issues are found.
  • Diagnostic testing points to a communication failure.
  • Other components test good but the problem persists.

Always verify compatibility with your Whirlpool washer model before purchasing a replacement control board.

Whirlpool W11603810 Replacement Options

If troubleshooting points to a faulty control board, replacing it may restore normal washer operation. The Whirlpool W11603810 Washer Control Board is designed to manage key washer functions, including cycle timing, communication, and system controls.

Before purchasing, verify that the part number matches your washer model to ensure proper compatibility and performance.

A Whirlpool washer that stops mid-cycle can be frustrating, but the problem is not always a major mechanical failure. While issues such as lid locks, drain pumps, and wiring should be checked first, a faulty W11603810 control board is a common cause when the washer repeatedly freezes or fails to complete cycles.

Careful troubleshooting can help confirm the issue and prevent unnecessary part replacement, saving both time and money.
