The WPW10144820 Whirlpool washer water inlet valve replaces or cross-references several earlier and related part numbers. These compatible replacement numbers include 1480998, 33190126, 33190127, AP6015761, EAP11749042, PS11749042, W10140911, W10140914, W10144820, W10311458, WPW10144820VP, AWP49944, and others.

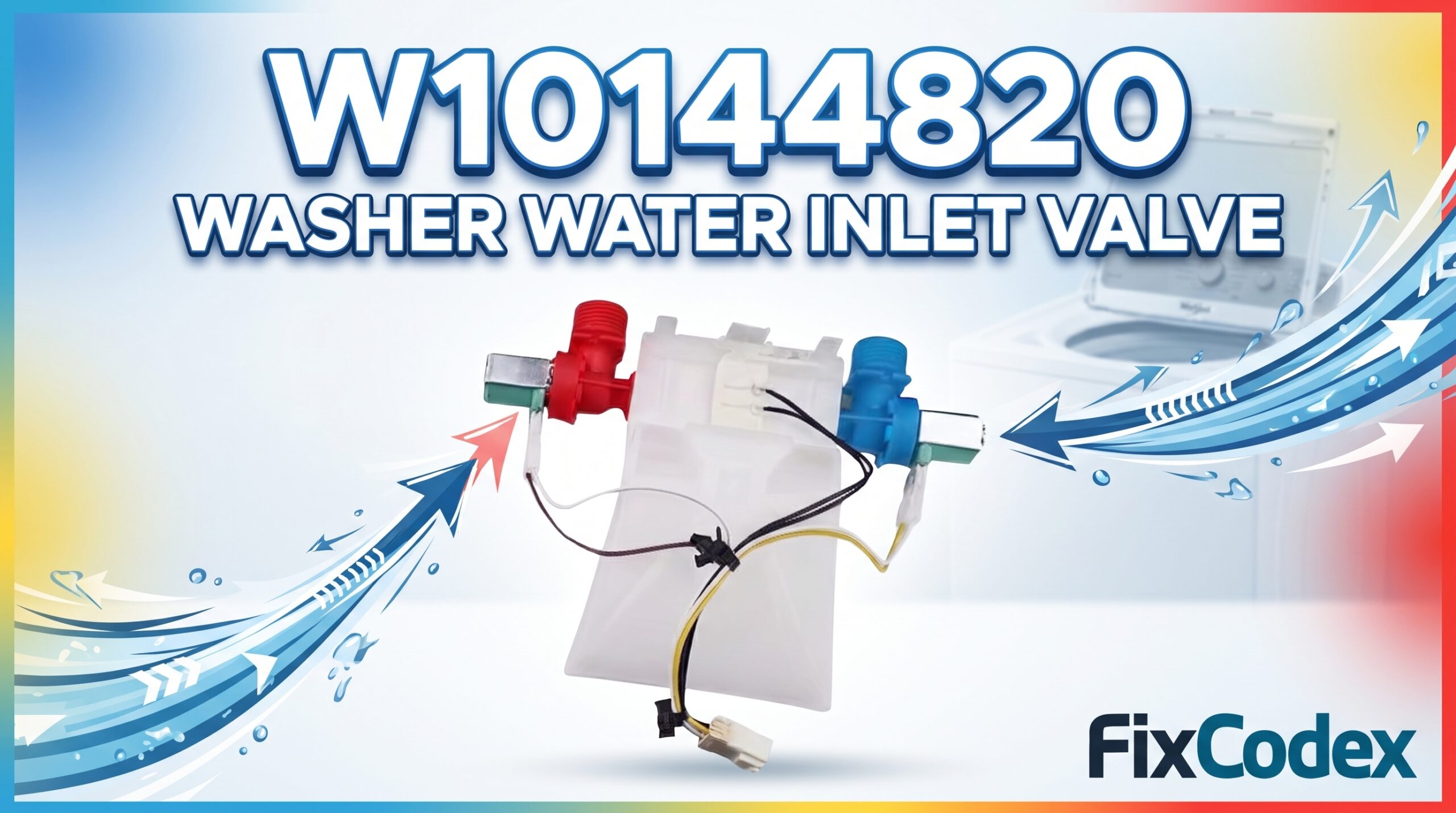

The W10144820 Whirlpool washer water inlet valve is a water inlet valve assembly used on select Whirlpool and related-brand top-load washing machines. It controls the flow of hot and cold water into the washer and includes a thermistor and vacuum-break assembly. Whirlpool lists WPW10144820 as the replacement for W10144820, with W10311458 also listed as a replaced part number.
🛒 Check Price & Buy on eBay
Check the current price, shipping options, and seller details on eBay before ordering.
Important: Always verify your washer’s complete model number and the replacement part number before purchasing. W10144820 is used on select models, not every Whirlpool washer.
What Does W10144820 Do?
The water inlet valve opens when the washer needs water and controls the water entering the machine. A defective valve can cause the washer to fill slowly or not fill at all.
The W10144820 assembly is described as including:
- Hot-water valve
- Cold-water valve
- Vacuum break
- Thermistor for water-temperature sensing
- Wiring harness/connector assembly.

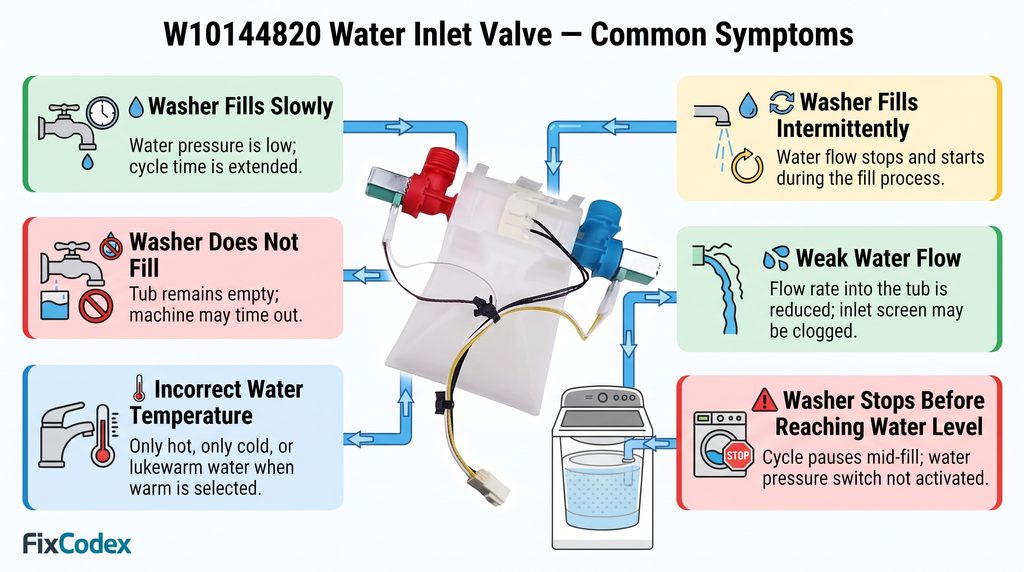

Common Symptoms of a Bad Water Inlet Valve
A failing or restricted inlet valve may contribute to:
- Washer fills slowly
- Washer does not fill with water
- Incorrect water temperature
- Washer fills intermittently
- Water flow is weak
- Washer stops because it cannot reach the required water level
However, these symptoms can also be caused by blocked inlet screens, low water pressure, hoses, wiring, the control system, or other components. Test the washer before replacing the valve.
W10144820 Replacement & Cross-Reference Numbers
The WPW10144820 Whirlpool washer water inlet valve replaces or cross-references several earlier and related part numbers. Compatible replacement numbers include:
1480998, 33190126, 33190127, AP6015761, EAP11749042, PS11749042, W10140911, W10140914, W10144820, W10311458, WPW10144820VP, AWP49944, and others.
If you’re replacing an existing water inlet valve, check your washer’s model number and the original part number to confirm compatibility before ordering.
Compatible Brands and Model Numbers
Replacement listings for this valve identify applications across several brands, including:
Whirlpool, Kenmore, Maytag, Amana, Roper, Admiral, Estate, Crosley, and Inglis.
Compatibility varies by model, so the brand name alone is not enough to confirm fit. Based on the provided compatibility list, here are the washer model numbers by brand.
Whirlpool
IV4800X0, 1CWTW5300VW1, RTW4440VQ1, WTW5600VQ0, RTW4305XQ0, WTW5510VQ0, RTW4305VQ1, 1CWTW5790VQ1, 1CWTW5505VQ1, CAWS16445VQ0, IV48001, RTW4305VQ2, 1CWTW5200VQ1, WTW5300VW3, WTW5300VW2, CAWS16445WQ0, IV4600X0, CAWSS16445WQ0, ETW4400WQ1, WTW5790VQ2, RTW4440XQ0, NTW4600XQ0, RTW4440VQ2, NTW4800VQ1, WTW5310VQ0, NTW4600VQ1, CSWS16445WQ0, NTW4800XQ0, WTW5590VQ1, WTW5200VQ2, IV46001, ETW4400XQ0, ATW4475VQ1, ITW4300XQ0, ATW4475XQ0, NTW4880YQ0, ATW4475VQ0, CAWS14234VQ0, 1CWTW5590VQ1, WTW5505VQ1, ETW4400WQ0, and more.
Kenmore
110.29727801, 110.29432801, 110.28222701, 110.20522900, 110.29532801, 110.29732801, 110.29422801, 110.5062110, 110.18812701, 110.29737801, 110.29692801, 110.29672801, 110.29522801, 110.29682801, 110.29632801, 110.29722801, 110.29442801, 110.29622801, 110.29592801, and more.
Maytag
MVWC400VW1, MVWC300VW1, MVWC700VJ1, MVWC450WW0, MVWC500VW1, MVWC700VW1
Amana
NTW4600XQ0, NTW4800VQ1, NTW4600VQ1, NTW4500XQ0, NTW4880YQ0, NTW4800XQ0
Admiral
ATW4475XQ0, ATW4475VQ1, ATW4475VQ0
Roper
RTW4305XQ0, RTW4305VQ1, RTW4440VQ1, RTW4440XQ0, RTW4305VQ2, RTW4440VQ2
Crosley
CAWSS16445WQ0, CAWS16445WQ0, CSWS16445WQ0, CAWS16445VQ0, CAWS14234VQ0
Inglis
IV46001, IV4600X0, ITW4300XQ0, IV48001, IV4800X0
Estate
ETW4400XQ0, ETW4400WQ0, ETW4400WQ1
W10144820 Specifications
| Specification | Details |
|---|---|
| Part Number | W10144820 |
| Replacement Part | WPW10144820 |
| Part Type | Washer Water Inlet Valve Assembly |
| Application | Select top-load washers |
| Water Connections | Hot & Cold |
| Components | Valve, vacuum break, thermistor |
| Electrical | 110/120V, 60 Hz on listed replacement assemblies |
| Common Brands | Whirlpool and related brands |
Specifications can vary by exact replacement assembly, so confirm against your model’s parts diagram before installation.
🔧 Watch How to Replace Whirlpool Washer Water Inlet Valve WPW10144820
Watch this step-by-step repair video by AppliancePartsPros to learn how to replace the Whirlpool washer water inlet valve WPW10144820, including disconnecting the water hoses, removing the console and cabinet, installing the new valve, reassembling the washer, and testing the repair.
Related Whirlpool Washer Parts
If you’re troubleshooting a Whirlpool washer, you may also need:
- Water inlet valves
- Washer drain pumps
- Washer control boards
- Lid switches
- Pressure switches
- Drive and suspension parts
Final Check Before Buying
W10144820 → WPW10144820 is the key replacement relationship shown by Whirlpool’s parts listing.
Check your washer model number, compare the part number, and confirm compatibility before ordering.
Other Washer Water Inlet Valves:
- W11210463 Whirlpool Washer Water Inlet Valve
- Whirlpool Washer Water Inlet Valves
- W11101906 Whirlpool Washer Water Inlet Valve
Looking for a replacement Whirlpool washer water inlet valve? Explore our list of popular Whirlpool water inlet valves, including common part numbers and compatible replacement options. View Popular Whirlpool Washer Water Inlet Valves to find the right part for your washer and check current availability.
Affiliate Disclosure: We may earn a commission if you purchase through our links, at no extra cost to you.
1 thought on “W10144820 Whirlpool Washer Water Inlet Valve”
