Looking for a popular Whirlpool washer water inlet valve? Commonly searched part numbers include 285805, W10144820, WPW10144820, W11101906, W11210463, W11210459, W11038689, and W11513255.
A Whirlpool washer water inlet valve controls the flow of hot and cold water into your washing machine during the wash cycle. When the valve fails, your Whirlpool washer may not fill, fill slowly, fill with the wrong temperature, or continue filling when it should stop.
Replacing a faulty water inlet valve can often restore normal water flow and help your washer complete its cycle properly.
If you are looking for a replacement Whirlpool washer water inlet valve, check the part number on your original valve and compare it with the replacement part before ordering.
Popular Whirlpool Washer Water Inlet Valves
Looking for a replacement Whirlpool washer water inlet valve? These are some commonly searched and sold Whirlpool water inlet valve part numbers. Always verify the complete washer model number and replacement part number before ordering.
Click the links below to see product details, compare prices, and shop on eBay.
- 285805 Whirlpool Washer Water Inlet Valve
- W10144820 Whirlpool Washer Water Inlet Valve
- W11101906 Whirlpool Washer Water Inlet Valve
- W11210463 Whirlpool Washer Water Inlet Valve
- W10701459 Whirlpool Washer Water Inlet Valve
- W11038689 Whirlpool Washer Water Inlet Valve
- W10869800 Whirlpool Washer Water Inlet Valve
- W11513255 Whirlpool Washer Water Inlet Valve
- W11165546 Whirlpool Washer Water Inlet Valve
- W10758828 Whirlpool Washer Water Inlet Valve
- W11096267 Whirlpool Washer Water Inlet Valve
- W11096268 Whirlpool Washer Water Inlet Valve
- W11220230 Whirlpool Washer Water Inlet Valve
- W10683603 Whirlpool Washer Water Inlet Valve
- W10140917 Whirlpool Washer Water Inlet Valve
- W10140918 Whirlpool Washer Water Inlet Valve
- W10509710 Whirlpool Washer Water Inlet Valve
- W11385821 Whirlpool Washer Water Inlet Valve
You can find more Whirlpool washer water inlet valves on eBay here, including additional replacement options, part numbers, and compatible valves for different washer models.
Whirlpool Washer Water Inlet Valve Replacement
A replacement water inlet valve is commonly needed when the original valve is clogged, electrically defective, leaking, or no longer opening and closing correctly.
Before buying a replacement, check:
- Original valve part number
- Whirlpool washer model number
- Number and location of water connections
- Electrical connector configuration
- Hot and cold water ports
- Replacement and compatible part numbers
Always verify compatibility with your specific washer model before purchasing.

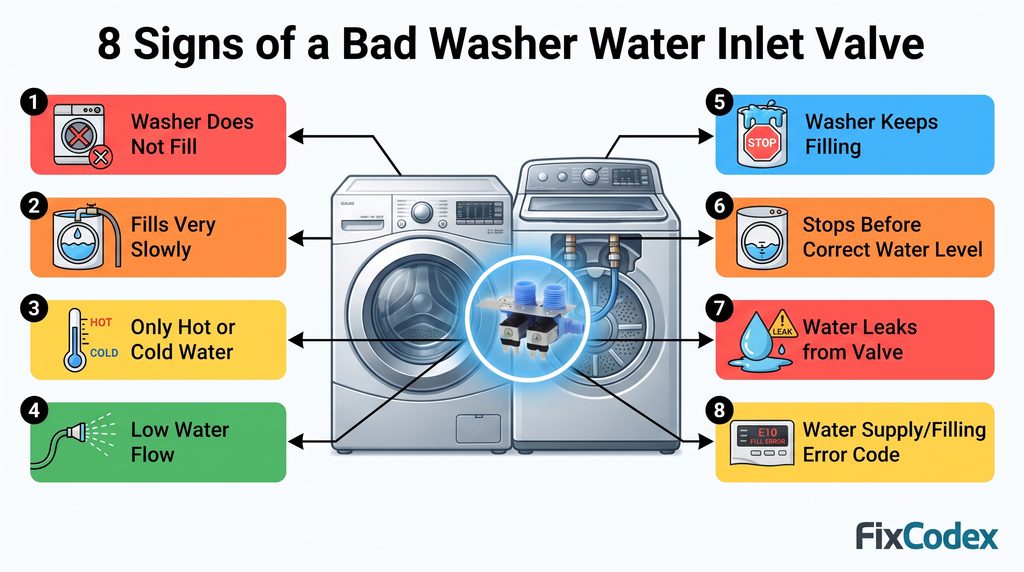

Common Whirlpool Washer Water Inlet Valve Problems
A defective water inlet valve can cause several washer problems, including:
- Washer does not fill with water
- Washer fills very slowly
- Washer fills with only hot or cold water
- Washer has low water flow
- Washer continues filling
- Washer stops filling before reaching the correct water level
- Water leaks from the inlet valve
- Washer displays a water supply or filling-related error code
Some of these symptoms can also be caused by blocked inlet screens, kinked hoses, low household water pressure, wiring problems, or a defective control component.
Whirlpool Washer Error Codes Related to Water Inlet Valves
A faulty or restricted Whirlpool washer water inlet valve can cause several error codes, especially when the washer cannot fill with water correctly. Common codes include:
- F8E1 – Water supply or fill problem. Check the household water supply, inlet hoses, screens, and water inlet valve.
- F8E3 – Water level or overflow-related problem. Inspect the inlet valve and water-level sensing system.
- F9E1 – Drain-related error that may sometimes occur during an abnormal water-level condition; check the drain system as well as the inlet system.
- LF / Lo FL – Long fill. The washer is taking too long to fill. Check the water faucets, inlet hoses, valve screens, and water inlet valve.
- HC – Hot and cold inlet hoses may be connected incorrectly on applicable models. Check the hose connections and inlet valve.
Important: Error codes vary by Whirlpool washer model. A water inlet valve should not automatically be replaced just because an error code appears. First check that both water faucets are fully open, the inlet hoses are not kinked, and the valve inlet screens are clean.
If the washer has good water pressure but still fills slowly or does not fill, the water inlet valve may need to be tested or replaced.
How to Test a Whirlpool Washer Water Inlet Valve
Before replacing the valve, check the simple causes first:
- Make sure both water supply faucets are fully open.
- Check the inlet hoses for kinks or restrictions.
- Inspect the inlet screens for debris.
- Check the electrical connectors for loose or damaged connections.
- Test the valve according to the service information for your specific Whirlpool washer model.
- Compare the original valve with the replacement part before installation.
Because washer designs vary, use the correct service information for your model when performing electrical tests.
When Should You Replace the Water Inlet Valve?
Consider replacing the water inlet valve when:
- The valve does not open when energized.
- The valve has a damaged or cracked housing.
- The valve leaks.
- The valve has restricted water flow after the inlet screens and hoses have been checked.
- Electrical testing indicates a defective valve.
- The replacement valve is specifically listed as compatible with your washer model.
Always disconnect electrical power and water supplies before removing the valve.
How to Choose the Correct Whirlpool Washer Water Inlet Valve
The safest way to select a replacement is to match three things:
1. Washer model number
Identify the complete model number of your Whirlpool washer.
2. Original valve part number
Check the number printed or molded on the original water inlet valve.
3. Replacement compatibility
Confirm that the replacement valve specifically replaces your original part number and fits your washer model.
This helps reduce the risk of ordering an incorrect valve.
Buy Whirlpool Washer Water Inlet Valves
Ready to replace your Whirlpool washer water inlet valve?
Check the available replacement valves and compare the part number, compatible models, price, shipping, and return policy before ordering.
Affiliate Disclosure: FixCodex may earn a commission when you purchase through links on this page, at no additional cost to you.
Frequently Asked Questions
What does a Whirlpool washer water inlet valve do?
The water inlet valve controls water entering the washing machine. It uses electrically controlled valves to allow water into the washer during the appropriate part of the cycle.
Why is my Whirlpool washer not filling with water?
Possible causes include closed water faucets, kinked inlet hoses, clogged inlet screens, low water pressure, wiring problems, or a defective water inlet valve.
Can I replace a Whirlpool washer water inlet valve myself?
Many water inlet valves can be replaced as a DIY repair, but the procedure varies by washer model. Disconnect power and water supplies before working on the appliance and follow the appropriate service instructions.
How do I find the correct Whirlpool washer inlet valve?
Start with the washer’s complete model number and the part number on the original valve. Then verify the replacement part’s compatibility before purchasing.
Is a Whirlpool water inlet valve interchangeable between models?
Not necessarily. Whirlpool uses different valve designs and part numbers across its washer models. Always verify the exact model and replacement part number.
Should I buy OEM or compatible?
Either may be an option depending on your needs. The most important consideration is that the replacement valve is correctly specified for your washer model and original part number.
Need more parts for your washer repair? View our other washer parts, including Whirlpool washer control boards, Whirlpool washer drain pumps, water inlet valves, lid locks, and other replacement parts for common washer problems and repairs.
