The W11101906 Whirlpool washer water inlet valve is associated with several compatible or cross-reference part numbers, including W11210463, W10701461, W10869803, W10883458, and W11038696. It may also be identified by competitor or alternate SKUs such as 4591539, AP6329219, EAP12349269, PS12349269, AWP43372, and PD00042820.
The W11101906 Whirlpool washer water inlet valve is a replacement water inlet valve used on select Whirlpool washing machines. The valve controls the flow of hot and cold water into the washer during the fill cycle.
If your Whirlpool washer is not filling properly, filling slowly, overfilling, or not getting the correct water supply, the water inlet valve is one of the components worth checking.
W11101906 Water Inlet Valve: Specifications and Function
The W11101906 Whirlpool washer water inlet valve is a water supply component designed for select Whirlpool and related-brand top-load washing machines. It connects to the washer’s water supply and controls the flow of water into the tub during the wash cycle.
Specifications:
- Part Number: W11101906
- Part Type: Washer Water Inlet Valve
- Appliance: Washing Machine
- Application: Select top-load washers
- Brands: Whirlpool and compatible models from related brands
- Function: Controls water flow into the washer
- Installation: Connects to the household water supply and washer fill system
- Replacement: Verify the complete washer model number before ordering

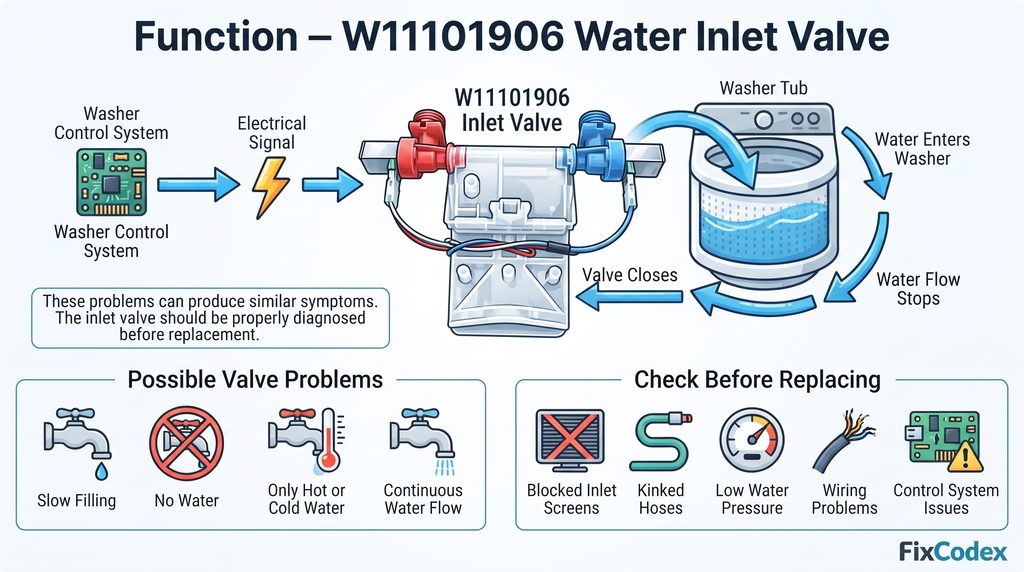

Function:
The water inlet valve receives an electrical signal from the washer’s control system and opens to allow water to enter the machine. Depending on the washer design and cycle, the valve controls the appropriate water supply during the filling process.
When the valve closes, it stops the water flow. A defective, clogged, or electrically failed inlet valve may cause symptoms such as slow filling, no water entering the washer, filling with only one water temperature, or continuous water flow.
Because these symptoms can also be caused by blocked inlet screens, kinked hoses, low water pressure, wiring problems, or the washer’s control system, the inlet valve should be properly diagnosed before replacement.
W11101906 Compatible Models
The W11101906 Whirlpool washer water inlet valve is listed for use with various Whirlpool and related-brand top-load washers. Compatible model numbers include:
Whirlpool
- NTW4665GW0
- NTW4655EW1
- ITW4671EW1
- ITW4871FW3
- NTW4516FW2
- ATW4516HW0
- CAW11544EW2
- ATW4516MW0
- WTW4616FW3
- WTW4816FW3
- RTW4516FW2
- ITW4971EW1
- CAW8350EW2
- NTW4516FW3
- NTW4516FW4
Amana
- NTW4655EW1
- NTW4516FW2
- NTW4605EW1
- NTW4665GW0
- NTW4516FW4
- NTW4516FW3
Inglis
- ITW4971EW1
- ITW4871FW3
- ITW4671EW1
Maytag
- MVW4005SW0
- NTW4516FW2
- NTW4516FW3
Crosley
- VWW3809RW0
- CAW11544EW2
- CWW3812RW0
- CAW8350EW2
Roper
- RTW4516FW2
Admiral
- ATW4516MW0
- ATW4516HW0
Important: Model compatibility can vary by production series and revision. Always verify your washer’s complete model number and compare the original water inlet valve before ordering a replacement.

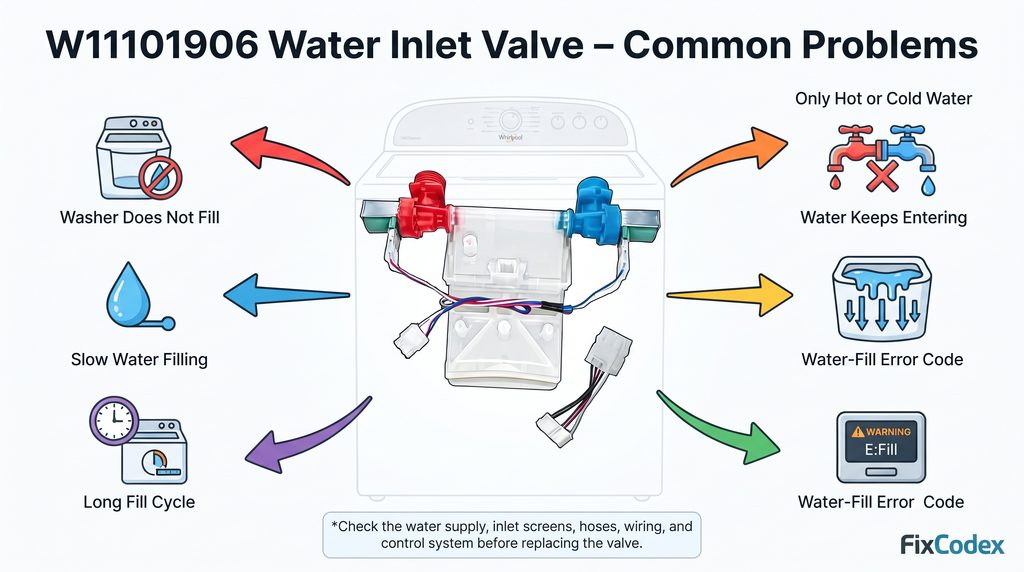

Common Symptoms of a Bad W11101906 Water Inlet Valve
A faulty or restricted water inlet valve may contribute to several washer problems, including:
- Washer does not fill with water
- Washer fills very slowly
- Washer fills with only hot or cold water
- Water continues to enter when it should stop
- Washer displays a water-fill-related error code
- Poor water flow during the wash cycle
- Washer takes unusually long to complete the fill cycle
These symptoms can also be caused by other components or installation issues. Before replacing the valve, check the water supply, inlet hoses, screens, wiring, and control system.
W11101906 Water Inlet Valve Replacement
If testing confirms that the inlet valve is defective, replacing the valve may restore normal water flow to the washer.
Before ordering, compare the part number, washer model number, valve configuration, and electrical connections with your original part. Whirlpool washer parts can look similar while having different applications.
Before Replacing the Valve
For safety, unplug the washer and shut off the water supply before servicing the water inlet valve.
Also check:
- Water supply faucets are fully open.
- Inlet hoses are not kinked or blocked.
- Inlet screens are clean.
- Electrical connectors are properly connected.
- The replacement valve matches the original part.
- Your washer model is listed as compatible with the replacement part.
Watch This Video: W11101906 Water Inlet Valve Replacement
Need help replacing the W11101906 water inlet valve? Watch this step-by-step installation video by Appliance Flipper to learn the process, tools, and helpful DIY tips. After installing the new part, remember to recalibrate the washer.
Video: How to Replace a Water Inlet Valve on a Washing Machine W11101906
Buy W11101906 Whirlpool Washer Water Inlet Valve
Looking for a replacement W11101906 Whirlpool washer water inlet valve? Check the current listing on eBay for availability, price, shipping options, and return information.
Check the latest price and availability on eBay before ordering.
