What Does the Whirlpool Washer F3E3 Error Code Mean?
The Whirlpool washer shows Error code F3E3, indicating a fault in the pressure monitoring system. This system helps detect water level by using the pressure sensor, guiding fill, wash, rinse, and drain.
The F3E3 error means your Whirlpool washer can’t accurately detect the water level, usually due to a blocked air trap, clogged pressure hose, or faulty pressure sensor.
When the pressure sensor receives incorrect or inconsistent readings, the washer displays the F3E3 error code and may stop the cycle to prevent improper operation.
Additionally, the issue is often caused by a blocked air trap, a clogged pressure hose, or a faulty pressure sensor. However, damaged wiring or a malfunctioning electronic control board can also trigger this error.
Common Causes of Whirlpool Washer Error Code F3E3
Several issues can cause the F3E3 error, including:
- Debris or detergent residue blocking the air trap
- A clogged, kinked, or disconnected pressure hose
- Faulty pressure sensor (water level sensor)
- Damaged or loose wire connections between the sensor and control board
- Excessive soap suds affecting pressure readings
- Defective main control board (less common)

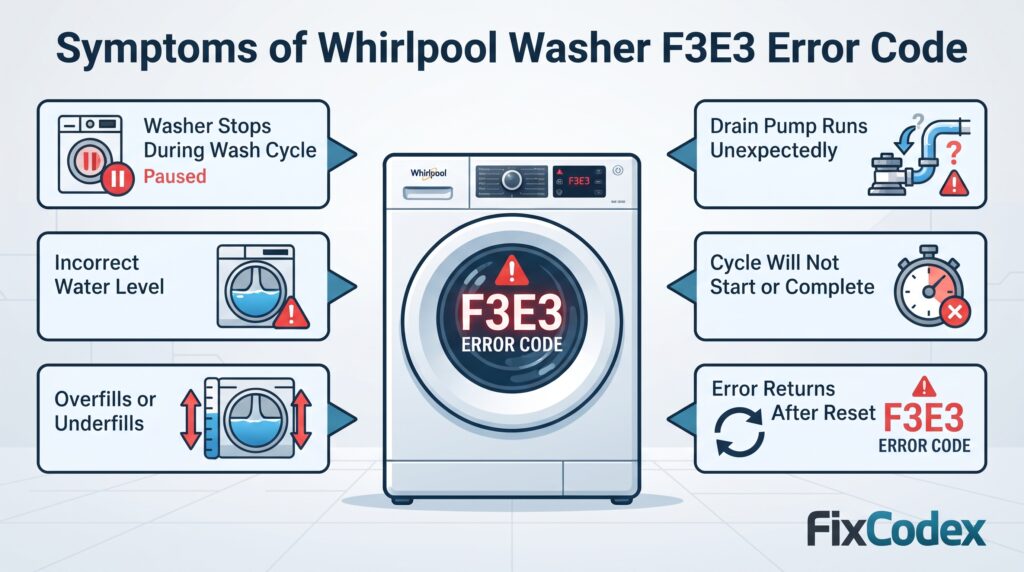

Symptoms of the F3E3 Error
If your Whirlpool washer displays Error code F3E3, you may notice one or more of the following:
- Washer stops during the wash cycle
- Incorrect water level in the tub
- Washer overfills or underfills
- Drain pump runs unexpectedly
- Cycle will not start or complete
- Error code returns after restarting the washer
How to Fix Whirlpool Washer Error Code F3E3
To proceed, follow these troubleshooting steps in order, including Error code F3E3.
1. Reset the Washer
Sometimes the error is temporary.
- Turn the washer off.
- Unplug it from the power outlet.
- Wait 5 minutes.
- Plug it back in and restart a wash cycle.
If the error returns, continue with the next steps.
2. Inspect the Pressure Hose
The pressure hose connects the pressure sensor to the air chamber.
Check for:
- Kinks or pinched sections
- Cracks or holes
- Loose connections
- Moisture inside the hose
- Blockages caused by detergent buildup
Remove the hose and gently blow through it. Air should pass freely.
Reconnect it securely before testing the washer again.
3. Clean the Air Trap
The air trap (also called the pressure chamber) can become clogged with:
- Detergent residue
- Fabric softener buildup
- Lint
- Dirt
- Small debris
A blocked air trap prevents accurate pressure readings.
Clean the chamber thoroughly using warm water and a soft brush if accessible.
4. Check the Pressure Sensor
If the hose and air trap are clean, inspect the pressure sensor.
Look for:
- Loose electrical connectors
- Corrosion
- Damaged terminals
- Signs of moisture
If you have a multimeter and the manufacturer’s service specifications, test the sensor. Replace it if it fails the electrical test or shows visible damage.
5. Inspect the Wiring Harness
Examine the wiring between the pressure sensor and the main control board.
Check for:
- Broken wires
- Burn marks
- Loose connectors
- Corrosion
- Pinched wiring
Repair or replace damaged wiring as necessary.
6. Reduce Excessive Detergent Use
Using too much detergent—especially non-HE detergent—can create excessive suds.
Heavy sudsing can interfere with pressure readings and trigger the F3E3 error.
Always:
- Use High-Efficiency (HE) detergent if required.
- Measure detergent according to the load size.
- Run a cleaning cycle if detergent buildup is suspected.
7. Test the Main Control Board
If all other components are functioning properly, the electronic control board may not be processing the pressure sensor signal correctly.
Because control board failures are less common and replacement can be costly, verify all previous troubleshooting steps before replacing the board.

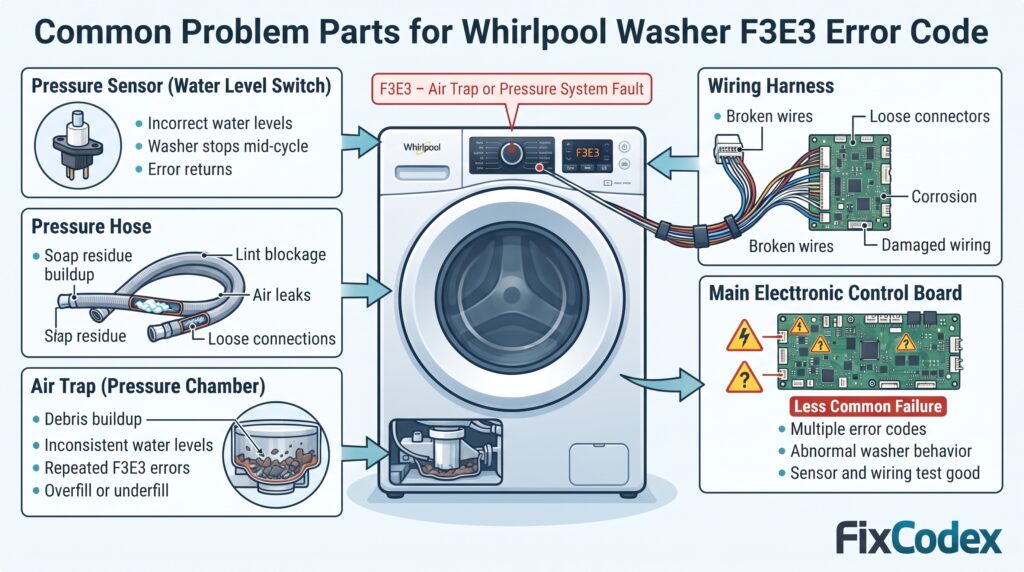

Common Problem Parts for Whirlpool Washer Error Code F3E3
When a Whirlpool washer displays the F3E3 – Air Trap or Pressure System Fault error, one or more of the following components may be causing the problem:
1. Pressure Sensor (Water Level Switch)
The pressure sensor monitors the washer’s water level by detecting air pressure in the pressure hose. If the sensor fails or sends inaccurate readings to the control board, the washer may display the F3E3 error.
Signs of failure:
- Incorrect water levels
- Washer stops mid-cycle
- Error code returns after resetting
- Sensor fails continuity or voltage tests
2. Pressure Hose
The pressure hose carries air pressure from the air trap to the pressure sensor. A clogged, cracked, pinched, or disconnected hose can prevent the sensor from measuring the correct water level.
Common issues:
- Soap residue buildup
- Lint or debris blockage
- Small air leaks
- Loose hose connections
3. Air Trap (Pressure Chamber)
The air trap is attached to the outer tub and creates the air pressure signal used by the pressure sensor. Detergent residue, lint, and other debris can clog the chamber, resulting in inaccurate pressure readings.
Symptoms include:
- Inconsistent water levels
- Repeated F3E3 errors
- Washer fills too much or too little
4. Wiring Harness
Damaged wiring between the pressure sensor and the electronic control board can interrupt communication and trigger the F3E3 fault.
Inspect for:
- Broken wires
- Loose connectors
- Corrosion
- Burned or pinched wiring
5. Main Electronic Control Board
Although less common, the main control board can cause the F3E3 error if it cannot properly interpret the pressure sensor’s signal or has an internal electronic fault.
Possible symptoms:
- Multiple unexplained error codes
- Washer behaves erratically
- Pressure sensor and wiring test good, but the error remains
Parts Most Commonly Replaced
The following components are most frequently replaced when resolving a Whirlpool washer F3E3 error:
- Pressure sensor (water level sensor)
- Pressure hose
- Air trap (pressure chamber), if damaged or blocked beyond cleaning
- Wiring harness or connector
- Main electronic control board (least common)
Buy Parts for Whirlpool Washer Error Code F3E3 on eBay
If cleaning the pressure hose and air trap doesn’t clear the F3E3 error, you may need to replace a faulty component. The most common replacement parts include:
- Pressure Sensor (Water Level Sensor) – The most common cause of the F3E3 error.
- Pressure Hose – Replace if it’s clogged, cracked, or damaged.
- Wiring Harness – Check for loose or damaged wires between the pressure sensor and control board.
- Electronic Control Board – Replace only after ruling out all other components.
Before ordering, verify your washer’s model number to ensure the replacement part is compatible. You can find genuine OEM and aftermarket Whirlpool washer parts from a variety of trusted sellers on eBay.
How to Prevent the F3E3 Error
To reduce the chances of the F3E3 error returning:
- Clean the washer regularly.
- Use the correct amount of HE detergent.
- Avoid overloading the washer.
- Inspect hoses during routine maintenance.
- Run a washer cleaning cycle monthly.
- Remove detergent residue before it hardens.
Frequently Asked Questions
Can I continue using my washer with the F3E3 error?
It is not recommended. The washer cannot accurately detect the water level, which may lead to incomplete washing, overfilling, or interrupted cycles.
Can a clogged pressure hose cause the F3E3 error?
Yes. A blocked or kinked pressure hose is one of the most common causes of the Whirlpool F3E3 error because it prevents the pressure sensor from measuring the water level accurately.
Will unplugging the washer clear the F3E3 error?
A power reset may temporarily clear the error if it was caused by a minor electronic glitch. If the underlying problem remains, the error code will usually reappear during the next wash cycle.
Is the pressure sensor difficult to replace?
The pressure sensor is generally accessible once the washer’s top or rear panel is removed, depending on the model. If you’re comfortable working with appliances, replacement is often straightforward. Always disconnect power before servicing the washer.
When to Call a Technician
If you’ve cleaned the air trap, inspected the pressure hose, verified the wiring, and the Whirlpool washer F3E3 error code still appears, the pressure sensor or electronic control board may require professional diagnosis or replacement.
Additionally, a qualified appliance technician can perform electrical testing to accurately identify the failed component and restore normal washer operation.
