What Does the Whirlpool Washer F3E5 Error Code Mean?
The Whirlpool washer error code F3E5 indicates a problem with the washer’s temperature sensor system. The temperature sensor monitors the incoming water temperature and sends information to the electronic control board so the washer can adjust the wash cycle correctly.
The F3E5 error means your Whirlpool washer cannot accurately detect water temperature, usually caused by a faulty temperature sensor, wiring problem, or control issue.
When the sensor provides inaccurate readings, fails to communicate, or cannot detect the water temperature properly, the washer may display the F3E5 error code. This can affect washing performance, cycle timing, detergent effectiveness, and overall cleaning results.
In most cases, the F3E5 error is caused by a faulty temperature sensor, damaged wiring, poor electrical connections, or a control board issue.

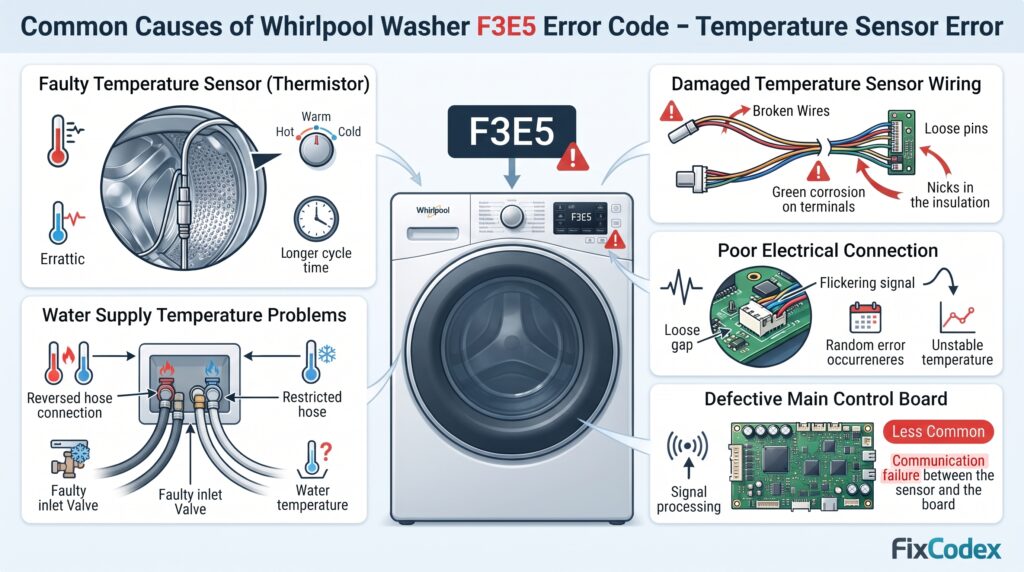

Common Causes of Whirlpool Washer Error Code F3E5
Several problems can trigger the F3E5 temperature sensor error, including:
1. Faulty Temperature Sensor
The temperature sensor (also called a thermistor) measures the temperature of the water entering the washer. If it fails, the control board may receive incorrect temperature readings.
Common symptoms:
- Washer displays the F3E5 error
- Water temperature is incorrect
- Wash cycles take longer than normal
- Washer cannot regulate hot, warm, or cold water settings
2. Damaged Temperature Sensor Wiring
The wiring harness connects the temperature sensor to the main control board. Damaged, loose, or corroded connections can interrupt communication.
Inspect for:
- Loose connectors
- Broken wires
- Corrosion on terminals
- Burn marks or damaged insulation
3. Poor Electrical Connection
A loose connection at the temperature sensor or control board can cause intermittent F3E5 errors.
Possible signs:
- Error appears randomly
- Washer works after restarting
- Temperature readings are inconsistent
4. Defective Main Control Board
The electronic control board processes the temperature sensor signal. If the board cannot read or interpret the sensor data correctly, it may trigger the F3E5 error.
A control board failure is less common and should be checked only after confirming the sensor and wiring are working properly.
5. Water Supply Temperature Problems
Although the F3E5 code is mainly related to the temperature sensor, incorrect water supply conditions may affect washer performance.
Possible issues include:
- Hot and cold water hoses connected incorrectly
- Restricted water flow
- Water supply valve problems
- Extremely low or high incoming water temperature
Symptoms of Whirlpool Washer F3E5 Error Code
When your Whirlpool washer shows the F3E5 error, you may notice:
- Washer cannot detect water temperature correctly
- Clothes are not cleaned properly
- Wash cycle settings do not match actual water temperature
- Cycle stops unexpectedly
- Error code appears during operation
- Washer uses incorrect wash temperatures
How to Fix Whirlpool Washer Error Code F3E5
Follow these troubleshooting steps to diagnose and repair the problem.
1. Reset the Washer
A temporary control glitch may trigger the error.
- Turn off the washer.
- Unplug it from the power supply.
- Wait about 5 minutes.
- Plug the washer back in.
- Run a test cycle.
If the F3E5 error returns, continue troubleshooting.
2. Check Water Supply Connections
Verify that the hot and cold water hoses are connected correctly.
Check for:
- Proper hose connections
- Open water supply valves
- Adequate water flow
- Blocked inlet screens
Incorrect water supply connections can affect temperature performance.
3. Inspect the Temperature Sensor
Locate the temperature sensor and check for:
- Cracks or physical damage
- Loose connections
- Corrosion
- Signs of overheating
If the sensor fails resistance testing according to the manufacturer’s specifications, it should be replaced.
4. Check the Wiring Harness
Inspect the wiring between the temperature sensor and control board.
Look for:
- Broken wires
- Loose plugs
- Damaged connectors
- Pinched wiring
Repair or replace damaged wiring as needed.
5. Test the Main Control Board
If the temperature sensor and wiring are functioning correctly, the control board may be unable to process the sensor signal.
Because control boards are expensive, confirm all other components before replacement.
Common Problem Parts for Whirlpool Washer Error Code F3E5
The most common parts associated with the Whirlpool F3E5 error include:
1. Temperature Sensor (Thermistor)
The temperature sensor is the most common replacement part. It measures incoming water temperature and sends readings to the control board.
Failure signs:
- Incorrect temperature readings
- Repeated F3E5 errors
- Washer performance issues
2. Temperature Sensor Wiring Harness
A damaged harness can prevent communication between the sensor and control board.
Common problems:
- Broken wires
- Loose connectors
- Corroded terminals
3. Water Inlet Valve
A faulty inlet valve may prevent the washer from receiving the correct hot or cold water supply.
Possible symptoms:
- Incorrect water temperature
- Slow filling
- No hot or cold water
4. Main Electronic Control Board
The control board is less commonly the cause but may fail to interpret temperature sensor signals correctly.
Watch Video: How To Fix Whirlpool Washer F3E5 Error Code
Learn what the Whirlpool washer F3E5 error code means and how to troubleshoot it step by step. This video from The Savvy Professor explains the common causes, possible solutions, and repair tips to help you diagnose the temperature sensor problem.
Buy Parts for Whirlpool Washer Error Code F3E5 on eBay
If cleaning connections and checking the sensor does not resolve the Whirlpool F3E5 error code, replacing a faulty component may be necessary.
Common replacement parts include:
- Temperature Sensor (Thermistor) – The most common repair for F3E5.
- Temperature Sensor Wiring Harness – Replace if wiring is damaged.
- Water Inlet Valve – Check if water temperature problems continue.
- Electronic Control Board – Replace only after testing other components.
Before ordering replacement parts, verify your washer’s model number and original part number to ensure compatibility. OEM and aftermarket Whirlpool washer parts are available from various online appliance parts sellers.
How to Prevent Whirlpool Washer Temperature Sensor Problems
To reduce future temperature sensor issues:
- Clean washer inlet screens regularly.
- Avoid forcing or bending water supply hoses.
- Check connections during routine maintenance.
- Use the correct detergent amount.
- Run washer cleaning cycles as recommended.
- Address error codes early to prevent additional damage.
Frequently Asked Questions
Can I use my Whirlpool washer with the F3E5 error?
The washer may continue operating, but incorrect temperature readings can affect cleaning performance and cycle operation. It is recommended to diagnose the issue before continued use.
Where is the temperature sensor located on a Whirlpool washer?
The temperature sensor location depends on the model. It is commonly installed near the water inlet area, dispenser assembly, or attached to the washer tub.
Is the F3E5 error caused by the water heater?
Most Whirlpool washers do not use an internal water heater for every model. The F3E5 code is typically related to the temperature sensor circuit, wiring, or control system.
How do I clear the Whirlpool F3E5 error code?
A power reset may temporarily clear the code, but if the sensor or wiring problem remains, the error will return.
When to Call a Technician
If the temperature sensor, wiring connections, and water supply system appear normal but the Whirlpool washer F3E5 error code continues, professional diagnosis may be required.
A technician can test the sensor circuit, wiring resistance, and electronic control board to identify the exact cause and complete the repair safely.
