The F5 E3 Whirlpool washer error code indicates a problem with the washer’s door or lid lock system. Depending on the washer model, the code may appear when the lock does not unlock properly or when the door does not lock as expected.
Whirlpool recommends checking that the door or lid is completely closed and that nothing is preventing the latch from operating correctly.
What Does F5 E3 Mean on a Whirlpool Washer?
F5 E3 means the washer has detected a problem with the door or lid lock.
On some Whirlpool top-load models, F5 E3 is associated with a lid that will not unlock. Whirlpool also provides a video specifically for top-load washers titled “F5 E3 Error Code for Top Load Washer – What to do When Your Lid Won’t Unlock.”
On Whirlpool front-load washers, F5E3 indicates that the door is not locking properly. Whirlpool recommends making sure the door is completely closed and checking that clothing or other objects are not blocking the latch.

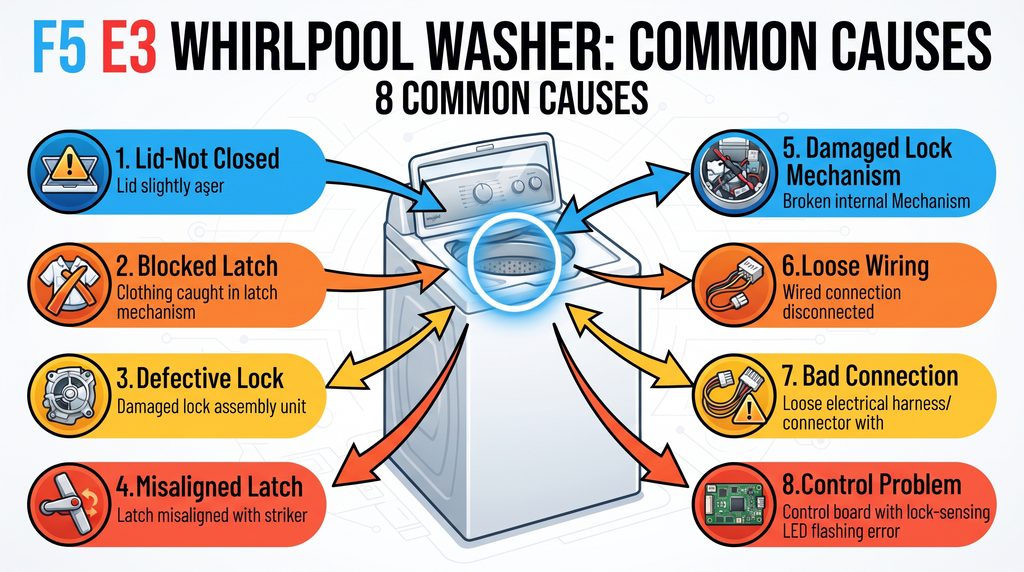

Common Causes of F5E3 Whirlpool Washer Error Code
The F5 E3 error may occur because of:
- Door or lid not completely closed
- Clothing or another object blocking the latch
- Defective door lock or lid lock assembly
- Damaged or misaligned latch
- Damaged lock mechanism
- Loose or damaged wiring
- Poor electrical connection
- Control or lock-sensing problem
The exact cause depends on the Whirlpool washer model, so check the model-specific technical information before replacing a part.
How to Fix F5 E3 Whirlpool Washer Error Code
1. Check the Door or Lid
Make sure the washer door or lid closes completely. Remove any clothing or objects that may be caught around the latch or lock area.
2. Check the Lock and Latch
Inspect the door/lid lock and latch for visible damage, cracks, or misalignment. A damaged lock mechanism may prevent the washer from properly detecting the door or lid position.
3. Reset the Washer
Whirlpool recommends cycling power to the washer control. Disconnect the washer from power for about 5 minutes, then reconnect it and try the cycle again.
4. Check the Wiring
If the error returns, inspect the wiring and electrical connections between the lock assembly and control. Look for loose connectors, damaged wires, or signs of corrosion.
5. Check for a Faulty Lock Assembly
If the door or lid closes correctly but F5 E3 continues to appear, the door/lid lock assembly may require further testing or replacement. Verify the correct part using the complete washer model number.
6. Consider the Control Board
If the lock, latch, wiring, and connectors are functioning correctly, the washer’s control or lock-sensing circuit may require professional diagnosis.
Fault Parts for F5 E3
Possible fault parts include:
- Door Lock Assembly
- Lid Lock Assembly
- Door/Lid Latch or Strike
- Lock Wiring Harness
- Electrical Connectors
- Main Control Board
Important: F5E3 does not automatically mean that the lock assembly has failed. Check the door or lid, latch, wiring, and connections before purchasing a replacement part.
Watch the Whirlpool Washer F5E3 Error Code Video
Watch this helpful video by Trim That Weed, “Whirlpool Washer F5 E3 Error Code (Causes and Solutions)”, for a practical look at the common causes of the F5 E3 error and possible solutions. It can be useful for visually following the troubleshooting process before replacing any parts.
When to Call for Service
If the F5 E3 error code returns after a power reset and the door or lid closes correctly, the washer may need further diagnosis. Whirlpool recommends contacting service if the suggested troubleshooting steps do not resolve the problem.
View Other Whirlpool Washer Error Codes
Need help with a different Whirlpool washer error code? View our complete Whirlpool Washer Error Codes guide to find code meanings, common causes, troubleshooting steps, and possible fault parts. Error codes can vary by washer model, so always check the code for your specific model.
