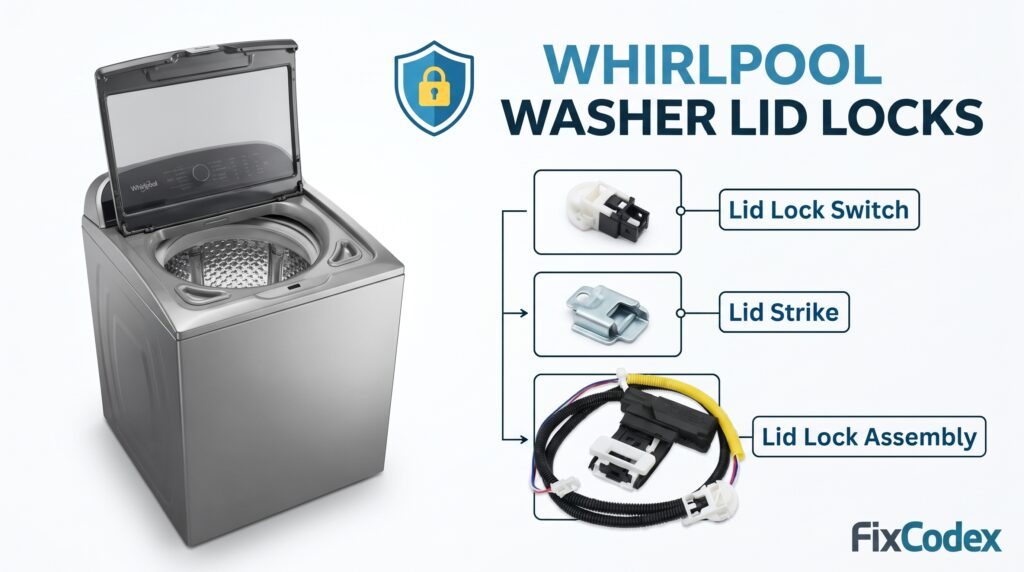

Looking for a replacement Whirlpool washer lid lock? Popular part numbers include W11307244, W10682535, W11414731, W11513248, W11457841, W11091027, W10810403, W10619844, and W10059230, covering lid lock switches, lid strikes, and lid lock assemblies for various Whirlpool washers.
A Whirlpool washer lid lock is an important safety component that keeps the washer lid securely closed during certain wash and spin cycles. If the lid lock is damaged, dirty, misaligned, or electrically defective, the washer may not start, fill, agitate, or spin properly.
If your Whirlpool top-load washer is showing a lid lock light, refusing to start, or stopping during a cycle, the lid lock assembly may need to be inspected or replaced.
You Might Need These Parts
If your Whirlpool washer has a lid-lock problem, you may also want to check related parts before replacing the entire assembly. A damaged lid strike, loose wiring connection, or defective control component can produce similar symptoms.
- W11307244 Whirlpool Washer Lid Lock Switch
- W10682535 Whirlpool Washer Lid Lock Switch
- W11414731 Whirlpool Washer Lid Lock Switch
- W11513248 Whirlpool Washer Lid Lock Switch
- W11457841 Whirlpool Washer Lid Strike
- W11091027 Whirlpool Washer Lid Strike
- W10810403 Whirlpool Cabrio Washer Lid Lock Assembly
- W10619844 Whirlpool Cabrio Washer Lid Lock Assembly
- W10059230 Whirlpool Washer Lid Lock
- W10240513 Whirlpool Washer Lid Lock Strike
- W10404050 Whirlpool Washer Lid Lock Latch Switch
- W10238287 Whirlpool Washer Lid Lock Latch Assembly
- W10744659 Whirlpool Washer Lid Lock Assembly
- W11368616 Whirlpool Washer Lid Lock Latch
- W11670519 Whirlpool Washer Lid Lock Latch
- W11700916 Whirlpool Washer Lid Lock
- W11032875 Whirlpool Washer Lid Lock
- W10787836 Whirlpool Washer Door/Lid Lock
- W10787878 Whirlpool Washer Door/Lid Lock
- WPW10619844 Whirlpool Washer Lid Lock Assembly
Check the correct replacement part for your Whirlpool washer model before purchasing.

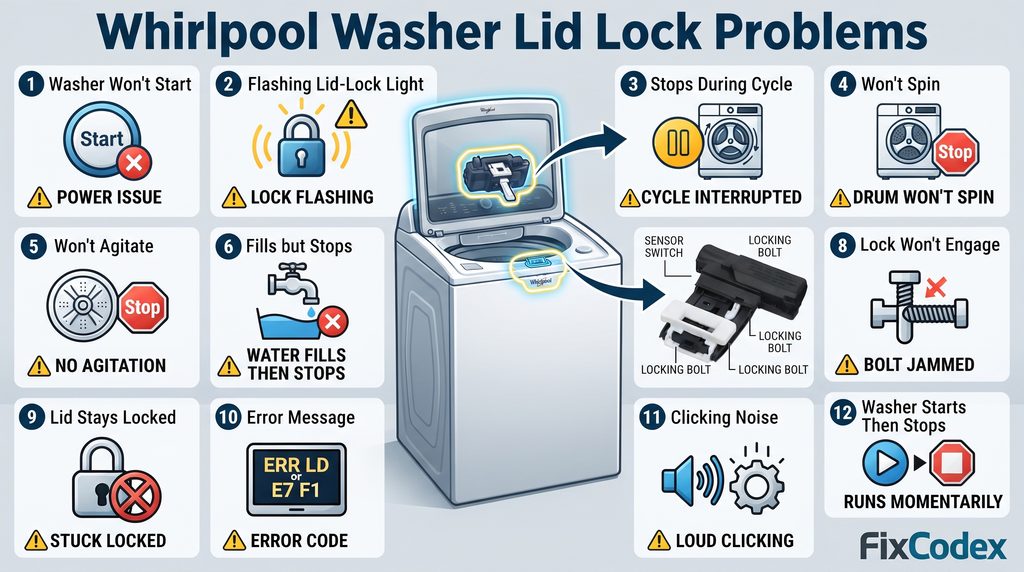

Common Whirlpool Washer Lid Lock Problems
A faulty or malfunctioning lid lock can cause several washer symptoms, including:
- Washer will not start
- Lid lock light flashes or stays on
- Washer stops during the cycle
- Washer will not spin
- Washer will not agitate
- Washer fills but does not continue the cycle
- Washer does not recognize that the lid is closed
- Lid lock does not engage
- Lid lock remains locked after the cycle
- Washer displays a lid lock-related error
- Washer makes clicking sounds near the lid
- Washer starts and then stops unexpectedly
These symptoms can also be caused by wiring problems, the lid strike, control board issues, or other washer components. Always check the complete lid-lock system before replacing a part.
Whirlpool Washer Lid Lock Error Codes
A Whirlpool washer may display an error code when the control cannot confirm that the lid is properly closed or locked. The exact code depends on the washer model and control system.
Common Whirlpool Lid Lock-Related Error Codes
| Error Code | What It May Indicate | What to Check |
|---|---|---|
| F5 E1 | Lid switch/lid-related problem | Make sure the lid closes completely and check for obstructions |
| F5 E2 | Lid lock will not lock | Inspect the lid lock, latch, and wiring |
| F5 E3 | Lid cannot unlock | Check for objects blocking the lid and inspect the lock mechanism |
| F5 E4 | Lid was not opened between cycles | Open and close the lid before starting another cycle |
Before Replacing the Lid Lock
An error code does not always mean the lid lock itself is defective. First:
- Remove anything blocking the lid or latch.
- Make sure the washer is level and the lid closes properly.
- Inspect the lid strike/latch for cracks or damage.
- Check the lid-lock wiring and connectors for loose or damaged connections.
- Disconnect power for a few minutes and restart the washer.
- If the error returns, test or inspect the lid-lock assembly according to the model’s service information.
Important: Whirlpool error codes can vary by model. Always check the technical sheet or owner’s/service manual for your specific washer before ordering a replacement part.
What Does a Whirlpool Washer Lid Lock Do?
The lid lock prevents the washer from operating certain functions while the lid is open. On many Whirlpool top-load washers, the control system checks the lid-lock assembly before allowing the washer to proceed with agitation or high-speed spinning.
The lid lock system may include:
- Lid lock assembly
- Lid strike
- Lock mechanism
- Electrical connector
- Wiring harness
- Control board
A problem with any of these components can prevent the washer from completing a cycle.

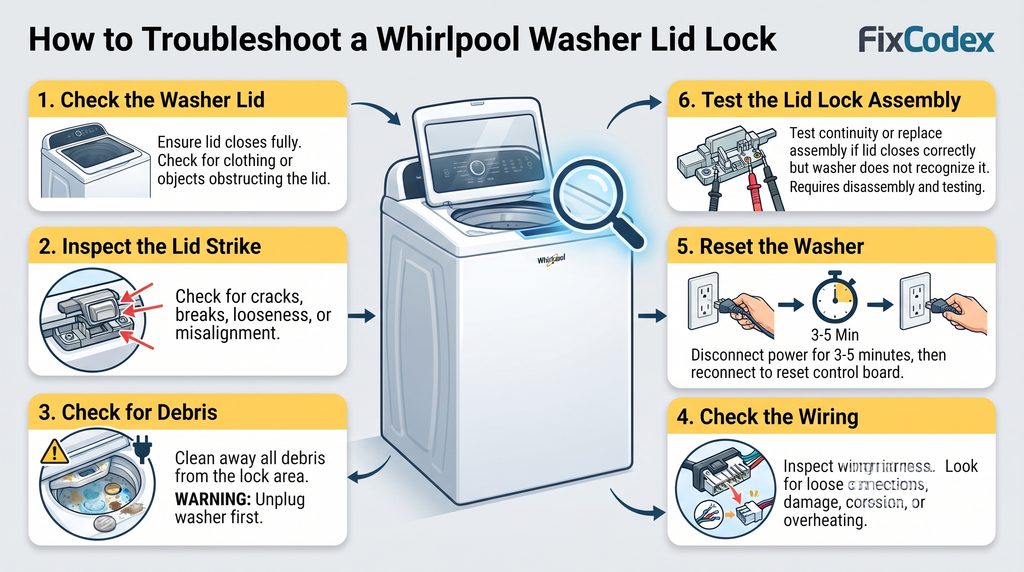

How to Troubleshoot a Whirlpool Washer Lid Lock
1. Check the Washer Lid
Make sure the lid closes completely and is not blocked by clothing or another object. A lid that does not close correctly may prevent the lock from engaging.
2. Inspect the Lid Strike
The lid strike is the plastic or metal piece that enters the lock mechanism when the lid closes. If it is broken, loose, cracked, or misaligned, the washer may not detect a properly closed lid.
3. Check for Debris
Dirt, detergent residue, or small objects around the lid-lock opening can interfere with the locking mechanism. Disconnect power before inspecting or cleaning the area.
4. Check the Wiring
Inspect the wiring and connector going to the lid-lock assembly. Look for loose connections, damaged wires, corrosion, or signs of overheating.
5. Reset the Washer
In some situations, disconnecting the washer from power for several minutes and reconnecting it may clear a temporary control problem. If the problem returns, further troubleshooting may be necessary.
6. Test the Lid Lock Assembly
If the lid closes correctly and the wiring appears normal but the washer still does not recognize the closed lid, the lid-lock assembly may be defective.
Always use the service information for your specific Whirlpool washer model when testing electrical components.
When Should You Replace a Whirlpool Washer Lid Lock?
Consider replacing the lid-lock assembly when:
- The lock mechanism is physically broken
- The washer cannot detect a closed lid
- The lock repeatedly fails during cycles
- The wiring and lid strike are in good condition
- Testing confirms a defective lid-lock assembly
- The washer shows a recurring lid-lock problem
Before ordering a replacement, check the complete model number of your Whirlpool washer. Similar-looking lid locks may have different connectors, mounting designs, or electrical specifications.
Whirlpool Washer Lid Lock FAQs
Why won’t my Whirlpool washer start?
A washer may not start if it does not detect that the lid is securely closed and locked. Check the lid, lid strike, lid-lock assembly, wiring, and applicable error codes.
Why is my Whirlpool washer lid lock light flashing?
A flashing lid-lock indicator can indicate that the washer is unable to properly engage or verify the lid lock. The cause may be the lock assembly, lid strike, wiring, or control system.
Can a Whirlpool washer spin without the lid lock?
The lid-lock system is designed as a safety feature. Do not bypass or defeat the lid-lock mechanism. Troubleshoot the underlying problem and replace defective components with the correct part.
How do I find the correct Whirlpool lid lock?
Start with the complete Whirlpool washer model number. Then compare the manufacturer’s part information and compatibility details before ordering a replacement.
Find Whirlpool Washer Parts
Whether you need a Whirlpool washer lid lock, lid strike, water inlet valve, drain pump, control board, or another replacement component, identifying the correct washer model is the first step toward finding the right part.
Check your Whirlpool washer model number before ordering replacement parts.
Looking for other washing machine replacement parts? Explore our guides for washer water inlet valves, drain pumps, washer control boards, lid locks, lid strikes, door switches, and other common replacement parts to help diagnose problems and find the right part for your washer. View Other Washing Machine Parts
