The F5E4 Whirlpool washer error code indicates that the washer detects the lid as open. On Whirlpool top-load washers, F5E4 is listed as a Door Lid Open error. The washer may not start or continue the cycle until the lid is properly closed and the control detects the correct lid status.
What Does F5E4 Mean on a Whirlpool Washer?
F5E4 means the Whirlpool washer detects that the lid is open.
The first thing to check is whether the lid is completely closed. Open and close the lid firmly, then try starting the washer again. If the F5E4 error continues to appear, there may be an obstruction, lid-lock problem, wiring issue, or another problem with the lid-sensing system.
Note: Whirlpool error codes can vary by model. Always check the owner’s manual or technical information for your specific washer model.

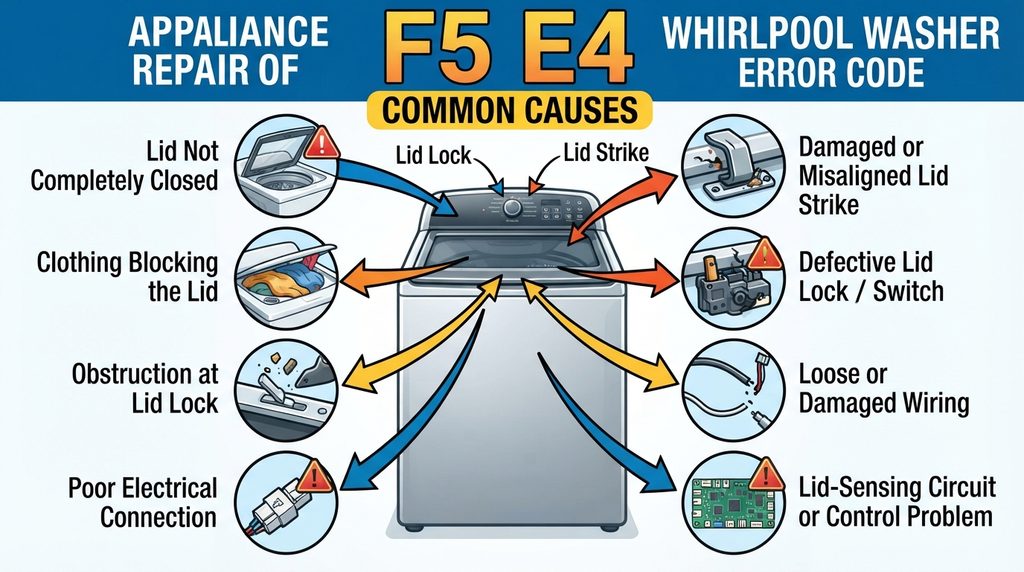

Common Causes of F5E4
The F5 E4 Whirlpool washer error code may occur because of:
- Lid is not completely closed
- Clothing or another object is preventing the lid from closing
- Obstruction around the lid lock or strike
- Misaligned or damaged lid strike
- Defective lid lock or lid switch assembly
- Loose or damaged wiring
- Poor electrical connection
- Problem with the lid-sensing circuit or control
A simple lid obstruction or incomplete closure may be enough to trigger the code, so check these items before replacing a part.
How to Fix F5 E4 Whirlpool Washer Error Code
1. Check the Washer Lid
Make sure the washer lid is completely closed. Remove any clothing or objects that may be caught between the lid and washer cabinet.
2. Check the Lid Lock Area
Inspect the lid-lock area for dirt, lint, detergent buildup, or other obstructions. Make sure the lid strike can properly enter the lock mechanism.
3. Check the Lid Strike
Look for a cracked, bent, loose, or misaligned lid strike. If the strike cannot properly engage the lock, the washer may continue to detect the lid as open.
4. Reset the Washer
If the lid is properly closed but F5E4 remains, disconnect the washer from power for 5 minutes, then reconnect it and restart the cycle. Whirlpool recommends this power reset as a way to reset the washer control.
5. Check the Wiring and Connections
If the error returns, inspect the wiring and electrical connectors associated with the lid-lock system. Look for loose connectors, damaged wires, or poor connections.
6. Check the Lid Lock Assembly
If the lid closes correctly but the washer still reports F5E4, the lid lock or lid-sensing system may require further testing.
7. Check the Control
If the lid, strike, lock, wiring, and connections are working correctly, the main control may need further diagnosis.
Fault Parts for F5E4
Possible fault parts include:
- Lid Lock Assembly
- Lid Switch
- Lid Strike
- Lid-Lock Wiring Harness
- Electrical Connectors
- Main Control Board
Important: F5E4 does not automatically mean the lid-lock assembly has failed. Check the lid and lock area first, then inspect the wiring and connections before purchasing replacement parts.
Watch the Whirlpool Duet Washer F5 E4 Error Code Video
Watch this video by ProWorks TV, “Whirlpool Duet Washer E4 F5 Error Code,” for a practical look at the error code and possible troubleshooting steps. The video can help you better understand the washer’s door or lid-lock system before attempting a repair.
F5E4 vs. Other Whirlpool F5 Error Codes
The F5 family of codes is commonly associated with the washer’s lid or door-lock system, but the exact meaning depends on the model. For example, Whirlpool technical documentation identifies F5E1 as a lid switch fault, F5E2 as a lid lock fault, F5E3 as a lid unlock fault, and F5E4 as a lid not opened between cycles on certain top-load platforms.
For a different Whirlpool washer model, the exact code description may differ. Always verify the error code using the complete model number.
When to Call for Service
If the F5E4 error code continues after closing the lid and resetting the washer, further diagnosis may be required. Whirlpool recommends contacting service if the suggested troubleshooting steps do not resolve the problem.
Frequently Asked Questions
Can I fix F5 E4 myself?
In many cases, start by checking that the lid closes completely and that nothing is blocking the lid-lock area. A power reset may also clear the error. If the code returns, the lid-lock system may need further testing.
Does F5E4 mean I need a new lid lock?
Not necessarily. F5E4 can be caused by the lid not being completely closed or an obstruction around the lid. Check these simple causes before replacing parts.
How do I reset a Whirlpool washer with F5E4?
Disconnect the washer from power for approximately 5 minutes, reconnect it, and try the cycle again.
View Other Whirlpool Washer Error Codes
Looking for another Whirlpool washer error code? View our complete Whirlpool Washer Error Codes guide for code meanings, common causes, troubleshooting steps, and possible solutions. Whirlpool notes that available error codes can vary by model, so check your washer’s model-specific information when diagnosing a problem.
