What Are Whirlpool Washer Control Board Error Codes?
Modern Whirlpool washers rely on an electronic control board to manage every aspect of the wash cycle, including water filling, motor operation, spin speed, drainage, and communication with other components.
When the main control board detects a malfunction or loses communication with critical parts of the washer, it may display a specific error code. These codes help identify the source of the problem and simplify troubleshooting.
“F1E1 or F7E1? Your Control Board May Be Failing.”
Control board-related error codes often indicate electronic failures, communication issues, power supply problems, or component faults affecting the washer’s operation.

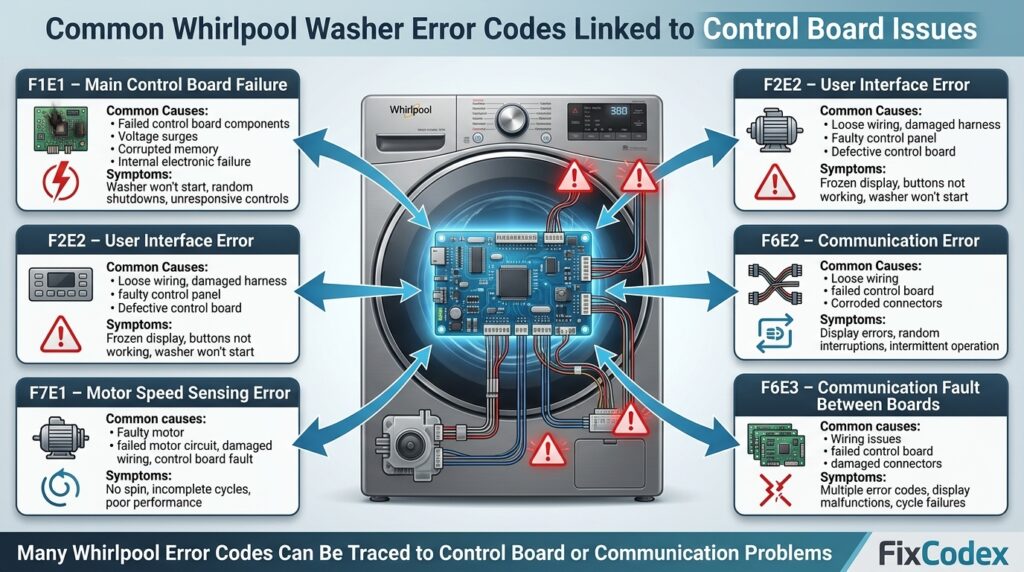

Common Whirlpool Washer Error Codes Linked to Control Board Issues
Control board problems can trigger a variety of error codes on Whirlpool washers. These codes often indicate communication failures, electronic malfunctions, or issues with the washer’s ability to control key functions.
Understanding which error codes are linked to the control board can help you diagnose problems more quickly and determine whether further troubleshooting or component replacement is needed.
The following error codes are commonly associated with the main control board or its communication circuits.
F1E1 – Main Control Board Failure
The F1E1 error indicates an internal fault within the washer’s electronic control board.
Common causes include:
- Failed control board components
- Voltage surges
- Corrupted control board memory
- Internal electronic failure
Common symptoms:
- Washer will not start
- Random shutdowns
- Unresponsive controls
- Error code immediately returns after reset
F2E2 – User Interface Error
The F2E2 error occurs when communication between the user interface (control panel) and the main control board is interrupted.
Common causes:
- Loose wiring connections
- Damaged wire harness
- Faulty control panel
- Defective main control board
Common symptoms:
- Control panel not responding
- Display freezes
- Buttons stop working
- Washer fails to start
F7E1 – Motor Speed Sensing Error
The F7E1 code appears when the control board cannot properly detect motor movement.
Possible causes include:
- Faulty motor
- Failed motor control circuit
- Damaged wiring
- Defective main control board
Common symptoms:
- Washer will not spin
- Washer hums but does not move
- Incomplete cycles
- Poor washing performance
F6E2 – Communication Error
This code indicates communication problems between electronic components.
Possible causes:
- Loose wiring
- Defective user interface
- Failed control board
- Connector corrosion
Common symptoms:
- Display errors
- Intermittent operation
- Random cycle interruptions
F6E3 – Communication Fault Between Boards
The F6E3 error occurs when the main control board loses communication with other control modules.
Common causes:
- Wiring issues
- Failed control board
- Damaged connectors
Common symptoms:
- Washer will not complete cycles
- Multiple error codes
- Display malfunctions
Common Symptoms of a Failing Whirlpool Washer Control Board
A defective control board can produce a variety of symptoms.
Watch for:
- Washer will not start
- Random error codes
- Unresponsive control panel
- Washer stops mid-cycle
- Motor will not operate
- Drain pump runs continuously
- Display flickers or goes blank
- Inconsistent cycle performance
- Washer gets stuck during a cycle
These symptoms may appear before the control board completely fails.
What Causes Whirlpool Washer Control Board Problems?
Several factors can contribute to electronic control board failures.
Power Surges
Voltage spikes can damage sensitive electronic circuits and corrupt control board memory.
Moisture Damage
Water leaks or excessive humidity can cause corrosion and short circuits.
Loose Wiring
Poor electrical connections can interrupt communication between components.
Component Wear
Over time, relays, capacitors, and integrated circuits may fail.
Manufacturing Defects
Although uncommon, some boards fail prematurely due to internal defects.

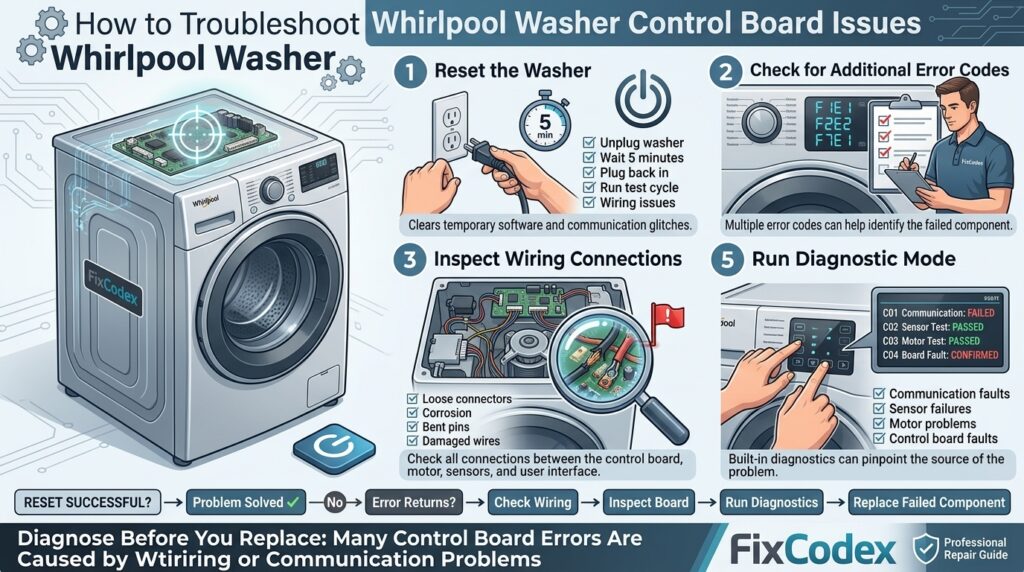

How to Troubleshoot Whirlpool Washer Control Board Issues
Control board problems can cause a wide range of Whirlpool washer errors, including startup failures, communication issues, and interrupted wash cycles.
Before replacing the control board, it’s important to perform a few basic troubleshooting steps to rule out wiring problems, temporary glitches, or other faulty components.
Follow the steps below to help identify the source of the issue and determine the appropriate repair.
Step 1: Reset the Washer
- Unplug the washer.
- Wait 5 minutes.
- Plug the washer back in.
- Run a test cycle.
A reset may clear temporary software or communication glitches.
Step 2: Check for Additional Error Codes
Record all displayed error codes.
Multiple codes often provide clues about whether the issue involves:
- Control board
- Motor
- User interface
- Sensors
- Wiring
Step 3: Inspect Wiring Connections
Disconnect power before servicing.
Inspect all wiring harnesses connected to:
- Main control board
- User interface
- Motor
- Sensors
Look for:
- Loose connectors
- Corrosion
- Bent pins
- Damaged wires
Step 4: Examine the Control Board
Inspect the control board for visible signs of failure.
Look for:
- Burn marks
- Swollen capacitors
- Melted connectors
- Corrosion
- Moisture damage
Any visible damage usually indicates replacement is required.
Step 5: Run Diagnostic Mode
Most Whirlpool washers include built-in diagnostic testing.
Diagnostic mode can help identify:
- Communication faults
- Sensor failures
- Motor problems
- Control board issues
Refer to the service manual for model-specific instructions.
Watch: Whirlpool Front Load Washer Error Codes & Diagnostics
If your Whirlpool front load washer is showing error codes or acting up during cycles, this video from Bens Appliances and Junk walks you through common error meanings, troubleshooting mode, and built-in diagnostics. Watch to learn how to quickly identify the issue and test your washer step by step.
Can You Repair a Whirlpool Washer Control Board?
In most cases, Whirlpool control boards are replaced rather than repaired.
While experienced electronics technicians may repair certain board components, replacement is often the fastest and most reliable solution.
How Much Does a Whirlpool Control Board Cost?
Typical replacement costs include:
| Component | Estimated Cost |
|---|---|
| Main Control Board | $150–$400 |
| User Interface Board | $75–$250 |
| Wiring Harness | $20–$100 |
| Professional Service Call | $75–$150 |
Prices vary by washer model and location.
How to Prevent Future Control Board Problems
You can reduce the risk of future failures by:
- Using a surge protector when possible
- Repairing water leaks promptly
- Avoiding excessive moisture exposure
- Inspecting wiring during maintenance
- Addressing error codes early
Preventive maintenance can significantly extend the life of electronic components.
Frequently Asked Questions
What Whirlpool error code indicates a bad control board?
The F1E1 error is one of the most common indicators of an internal control board failure.
Can a power surge damage a Whirlpool washer control board?
Yes. Voltage spikes can damage electronic circuits and trigger control board-related error codes.
Will resetting the washer fix a control board error?
A reset may clear temporary glitches, but it will not repair a physically damaged control board.
How do I know if my Whirlpool control board is bad?
Common signs include multiple error codes, an unresponsive control panel, cycle interruptions, and visible board damage.
Whirlpool washer control board error codes such as F1E1, F2E2, F6E2, F6E3, and F7E1 often point to communication failures, electronic malfunctions, or internal control board problems.
Understanding what these codes mean can help you diagnose issues more efficiently and determine whether the problem involves wiring, sensors, the user interface, or the main control board itself.
Suspect a faulty control board? Read our Whirlpool Washer Control Boards: Symptoms, Troubleshooting & Replacement Guide to learn how to diagnose control board failures, identify warning signs, and determine whether repair or replacement is needed.
